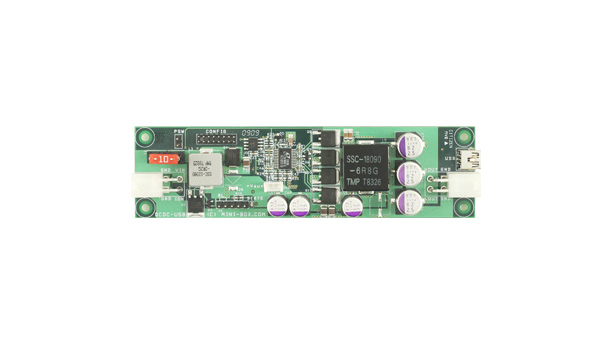

Spänningsomvandlare DC-DC USB interface

995.00kr  796.00kr ex. moms

Tillgänglighet: I lager (kan restnoteras)

Artikelnr: 009103 Kategori:

En spänningsregulator med inspänning från 6-34V till utspänning på 5-24V. Enheten har fyra lägen vilket gör den användbar i allt från UPS kontroller till regulator, fordonsnätdel eller styrning. Används med fördel för att köra standard hemelektronik i fordonsmiljö (tex för att köra en notebook i bilen utan att riskera att denna skadas av ojämn strömförsörjning). Enheten kan programmeras och ställas in via USB gränssnitt.

DCDC-USB, Intelligent DC-DC converter with USB interface
– Wide range input 6-34V
– Programmable output 5-24V
– Default output 12V
– High current, up to 10A

– Applications: power for motherboards with single rail power from any voltage to any voltage, laptops, custom electronics.
– Programmable via USB interface
– Sends ON/OFF pulse to motherboard
– 4 modes of operation: DUMB, Automotive, Script or UPS
– 100% Solid Polymer Capacitors, Japan

DCDC-USB, Intelligent DC-DC converter with USB interface

DCDC-USB is a high power intelligent DC-DC converter. This unit accepts any input ranging from 6-34V.
Output is 12V regulated or output can be changed with simple jumper settings to 5V, 6V, 9V, 12V, 13.5V, 18V or 24V or via USB in fine increments (0.25V) anywhere from 6-24V.

– Applications:
powering motherboard with single rail power from any voltage to any voltage, laptops, custom electronics. This module can be used to convert any voltage ranging 6-34V to any output from 5-24V.

The DCDC-USB has 4 models of operation:

Dumb mode: Acts as a regular DC-DC converter with wide input (6-34V) and produces a fixed 12V output (or any output from 6-24V)
Automotive mode: Acts as an intelligent PSU, ignition aware, will send ON/OFF pulse to the motherboard to turn ON/OFF. Standby power consumption is well under 1mA.
– UPS mode: The unit will act as an intelligent UPS unit, will shut down at prescribed battery voltages.
Script mode: Unit can be programmed to wake up, sleep, based on pre-programmed scripts.

Additional features of DCDC-USB:
– Remote ON/OFF switch capable of switching up to 6A, 8A peak.
– Can control motherboard ON/OFF pins
– Fused input, TVS protected
– USB mini, type B
– All Solid Polymer Capacitors, SVPD series, Sanyo, Japan.
