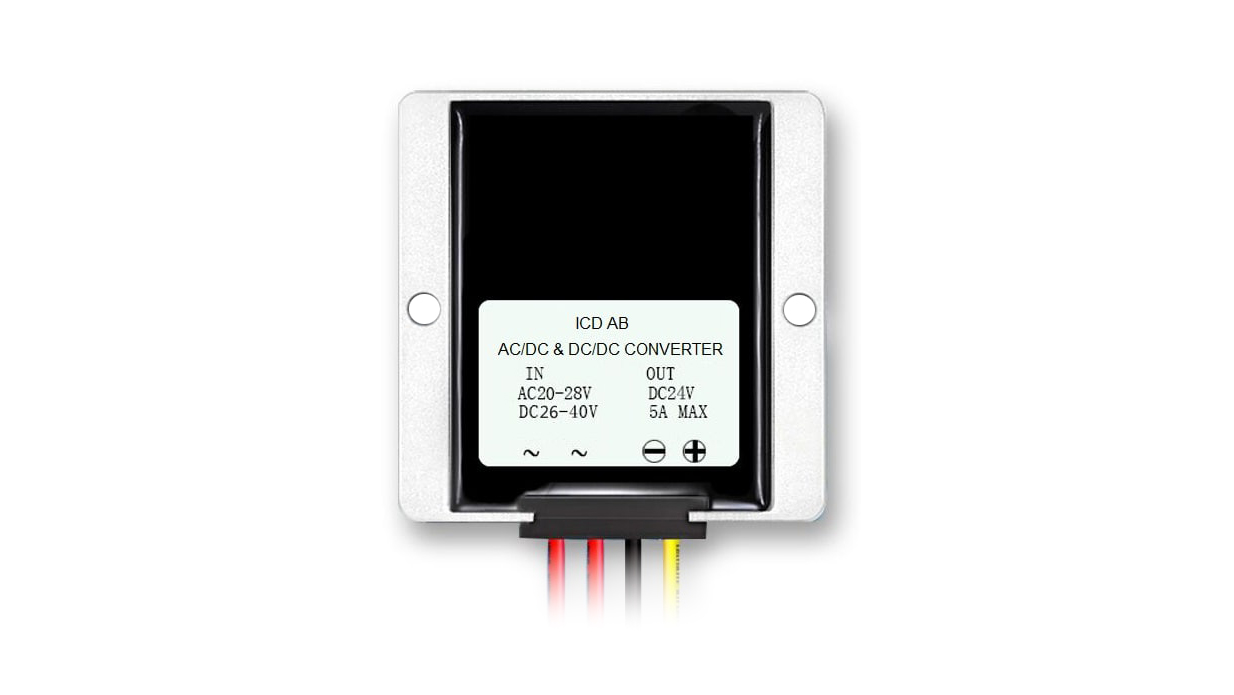

Light industrial likriktare från 24V AC in växelspänning (20 till 28VAC) till 24V DC likspänning. Fungerar även som omvandlare från DC 26-40V likspänning till 24V DC likspänning. 24V AC används ofta inom gruvindustrin. Designad för att man ska kunna använda 24V DC utrustning (såsom embedded datorer, lampor och kameror) i miljö där annars bara 24V AC spänning finns. Kan leverera upp till 120W och har både mekanik och elektronik som motsvarar krav som ofta finns i industriell. Det finns många kopior av denna modell men detta är originalet och den är såklart CE, RoHS och FCC certifierad.
SPECIFIKATION :
Product Name |
24vac to 24vdc converter |
|
Brand |
Lind AC |
|
Model No. |
ICD24VAC | |
Module Properties |
non-isolated module |
|
Rectification |
synchronous rectification |
|
Input |
||
Input Voltage |
AC 24V |
|
Input Voltage Range |
AC 20-28V DC 26-40V |
|
Output |
||
Output Voltage |
DC 24V |
|
Output Current |
5A |
|
Output Power |
120W |
|
Conversion Efficiency |
>93% | |
Voltage regulation |
±1% |
|
Load regulation |
± 2% |
|
Ripple (Full load test) |
< 150mV |
|
No-load current |
<100mA |
|
Working Temperature |
-40~80℃ |
|
Waterproof Rating |
IP68 |
|
Protection |
Over-current protection |
|
Overheat protection |
||
Output Short circuit protection |
||
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
Certification |
CE/RoHS/FCC |
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
Product Size (L x W x H) |
74*74*32mm |
|
Product Weight |
280g |
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
Cooling Way |
Free air convection |
|
OEM&ODM Service |
Accept |
