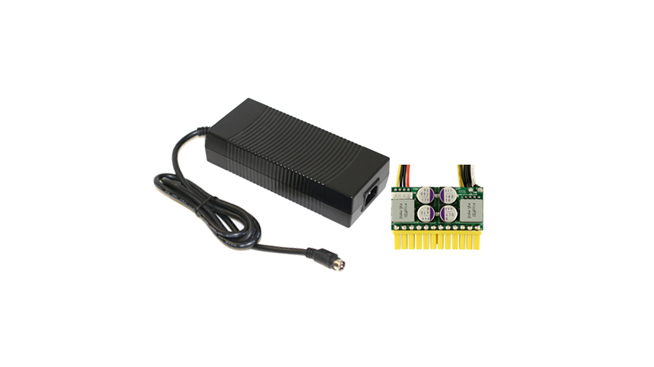

The picoPSU 160W is the toughest plug-in 12V ATX dc-dc power supply. The picoPSU is compatible with an entire range of mini-itx motherboards as well as regular boards. The picoPSU provides a cool, silent 160 Watts (200 watt peak) of power small PC designs using a single 12V power source.
By using Patent Pending HyperWatt[TM] technologies , this PSU packs an impressive amount of power relative with its very small footprint. The PSU has several key advantages over traditional power supplies:
– Very small , can build ultra-compact PC enclosures and slim server enclosures.
– Fits any motherboard equipped with a 24pin ATX connector.
– 100% silent, fanless, no moving parts.
– Operates at only 12V.
– Highly efficient design, does not produce a lot of heat.
– Ideal for ITX motherboards
Small computer projects start with small power supplies. The PSU is a crucial key component that unleashes the ultimate power solution for general purpose computing platforms. The picoPSU is fully ATX compliant PSU, making it an excellent candidate for any silent, fanless and small 12V DC-DC ATX PC power supply project.
Eliminate 24 unnecessary wires by plugging in directly into the motherboard ATX connector. The picoPSU 12V dc-dc ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements.
Operating at only 12V, the picoPSU dc-dc ATX power supply delivers 160 Watts of power. picoPSU provides plenty of power (via ATX connector and HDD cable harness) for CPU and an entire range of peripherals.
The picoPSU mini PSU is a 100% silent fanless dc to dc solution. No fans, no noise, just power for small and silent PCs.
picoPSU-160 is a fully compliant DC-DC ATX PC PSU. It can power VIA mini-ITX boards with C3 / C7 processors, P3, P4, Pentium-M, Core Duo versions and low power AMD and Intel Core precessors.
picoPSU-160 ATX DC-DC converter is very small, measuring just 53mm(L) * 20mm(W) * 36.5mm (H), about the size of two AA batteries.
CE / FCC / VCCI Certifications need to be obtained separately.
