ITX Power supply DC DC 160W PicoPSU 12 VDC High power 24 pin ATX

795.00kr  636.00kr ex. moms


Tillgänglighet: Kan restnoteras

Artikelnr: 005446 Kategori:

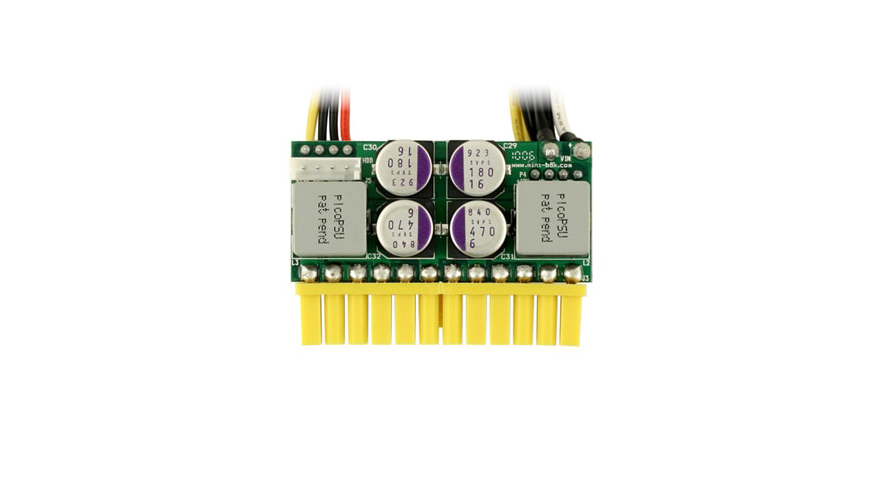

Pico PSU 160W High power, 24 pin mini-ITX power supply in a small package

En ultrakompakt nätdel som passar i en standard ATX kontakt på vanliga moderkort (ITX, mATX, ATX etc). Några av fördelarna är att produkten är fläktlös, väldigt liten och kompakt, klarar att driva system ända upp till 160w samt att man kan köra datorn på 12V.

Om ni avser att installera 160W PicoPSU i 1U rackchassi så rekommenderar vi att ni köper till denna produkt (150W PicoPSU går bra utan adapter):

ATX 24pin hane till 24pin hona vinklad adapter



High Reliability design, less cables. The picoPSU 160W is the toughest plug-in 12V ATX dc-dc power supply. The picoPSU is compatible with an entire range of mini-itx motherboards as well as regular boards. The picoPSU provides a cool, silent 160 Watts (200 watt peak) of power small PC designs using a single 12V power source.

By using Patent Pending HyperWatt[TM] technologies , this PSU packs an impressive amount of power relative with its very small footprint. The PSU has several key advantages over traditional power supplies:

– Very small , can build ultra-compact PC enclosures and slim server enclosures.
– Fits any motherboard equipped with a 24pin ATX connector.
– 100% silent, fanless, no moving parts.
– Operates at only 12V.
– Highly efficient design, does not produce a lot of heat.
– Ideal for ITX motherboards

Small computer projects start with small power supplies. The PSU is a crucial key component that unleashes the ultimate power solution for general purpose computing platforms. The picoPSU is fully ATX compliant PSU, making it an excellent candidate for any silent, fanless and small 12V DC-DC ATX PC power supply project.

Reduce space. Eliminate 24 unnecessary wires by plugging in directly into the motherboard ATX connector. The picoPSU 12V dc-dc ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements.

Cool power. Operating at only 12V, the picoPSU dc-dc ATX power supply delivers 160 Watts of power. picoPSU provides plenty of power (via ATX connector and HDD cable harness) for CPU and an entire range of peripherals.

100% Silent The picoPSU mini PSU is a 100% silent fanless dc to dc solution. No fans, no noise, just power for small and silent PCs.

picoPSU-160 is a fully compliant DC-DC ATX PC PSU. It can power VIA mini-ITX boards with C3 / C7 processors, P3, P4, Pentium-M, Core Duo versions and low power AMD and Intel Core precessors.

picoPSU-160 ATX DC-DC converter is very small, measuring just 53mm(L) * 20mm(W) * 36.5mm (H), about the size of two AA batteries.

CE / FCC / VCCI Certifications need to be obtained separately.
