| • Hardware | |
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connector | DB44 female |
| • Serial Interface | |
| Number of Ports | 4 |
| Serial Standards | RS-232 |
| Max. No. of Boards per PC | 4 |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| • Physical Characteristics | |
| Dimensions | 64.4 x 120 mm (2.53 x 4.72 in) |
| • Driver Support | |
| Windows | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux | Linux 2.4.x, 2.6.x, 3.x |
| Unix-like Systems | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD Note: Please refer to Moxa’s website for the latest driver support information. |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| EMC | EN 55022/24 |
| EMI | CISPR 22, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| • MTBF (mean time between failures) | |
| Time | 558,961 hrs |
| Standard | MIL-HDBK-217F |
| • Power Requirements | |
| Input Current | 120 mA @ 5 VDC |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
I/O KORT

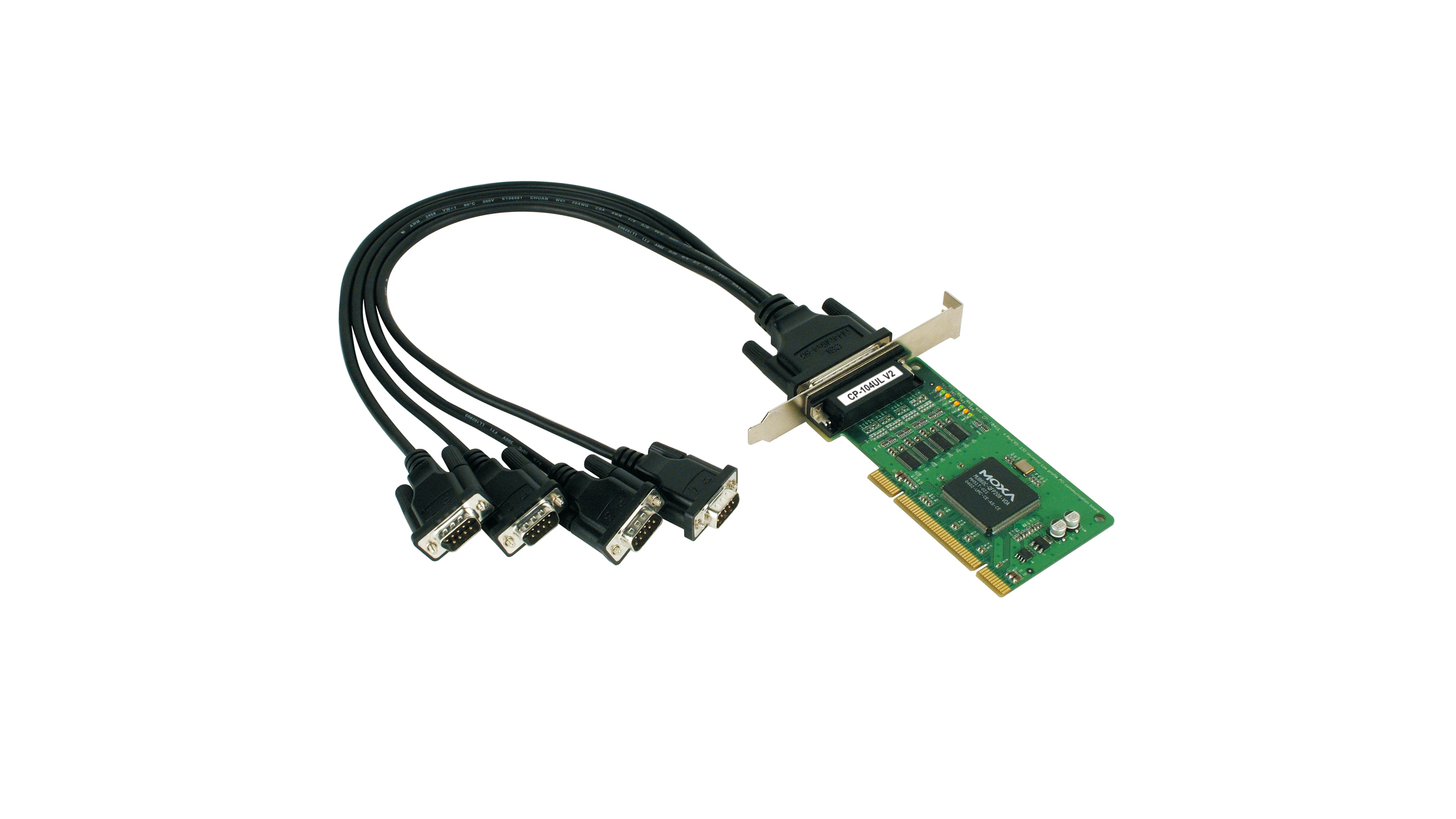

Moxa C104UL PCI 4 st serieportar RS232 ink bläckfisk
1,295.00kr 1,036.00kr ex. moms
Tillgänglighet: I lager (kan restnoteras)
