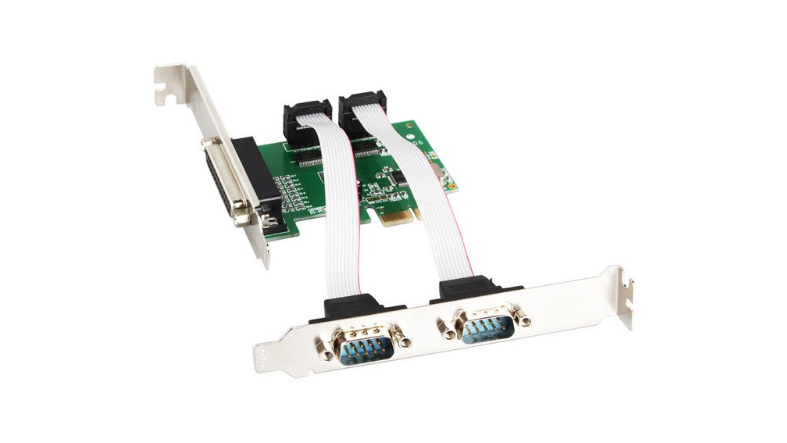

PCI Express kommunikationskort med 2 st RS 232 serieportar och med 1 st parallell port. Det ingår låg profil metallvinkel i priset.
Specifikation :
Fully Compliant with PCI-Express Base Specification, Revision 1.0a
Support for D1, D2, D3hot and D3cold
Supports PCIe Power Management
Serial Ports:
16C450/550/Extended 550 Compatible UARTs
Supports RS232, RS485 & RS422 Modes
Bi-directional Speeds from 50 bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Supported
Even, Odd, None, Space & Mark Parity Supported
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Supports Remote Wake-up and Power Management Features
Serial Port Transceiver Shutdown Supported
Support Slow IrDA on All Serial Ports
IEEE 1284 Parallel Port:
Multi-mode IEEE 1284 Compliant Controller (SPP, PS2, EPP, ECP)
Faster Data Rates up to 1.5Mbps for Parallel Port
Package Includes
2S/1P PCI-Express Serial & Parallel Card
Parallel Port Bracket
CD Driver
User Manual
Software requirement
Windows 7, 8, 10 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Windows 2000
Microsoft 2003 Server
Linux Kernel 2.6.11 & Above
Mac 10.4 & Above
