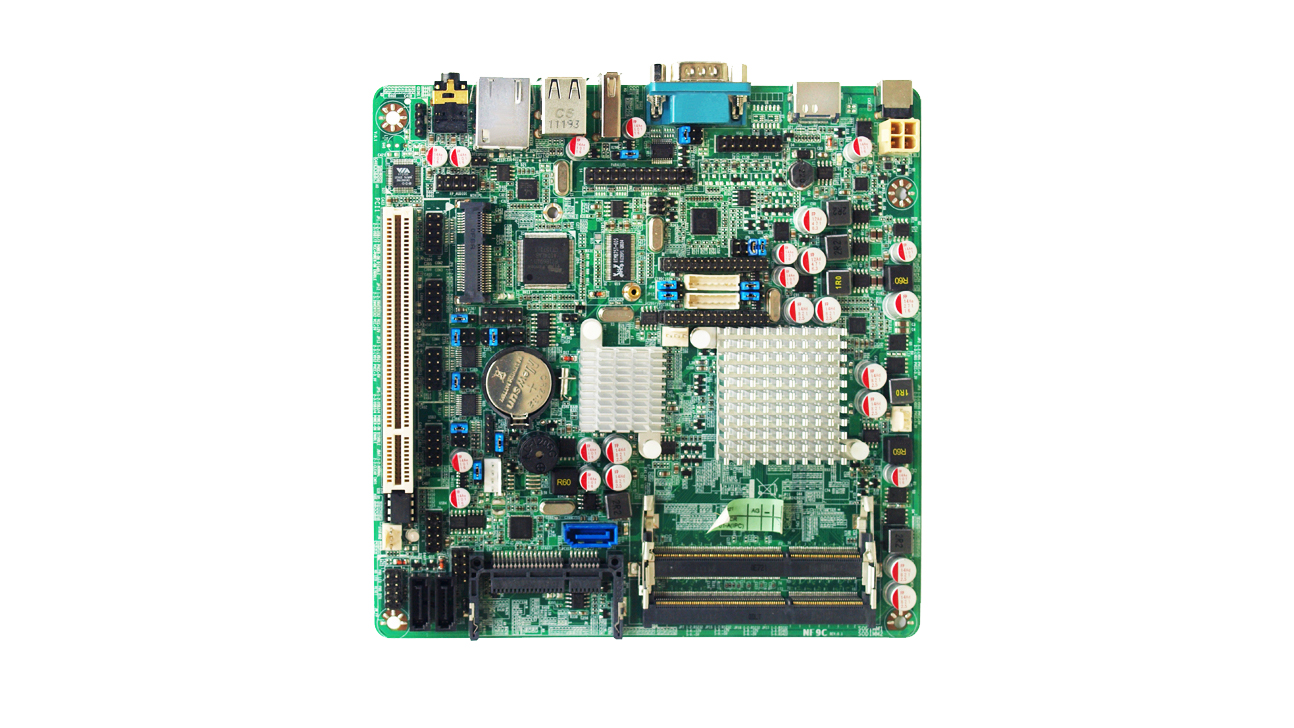

Jetway NF9C-2600 ITX Intel Atom N2600 Dual Core CPU

1,495.00kr  1,196.00kr ex. moms

Tillgänglighet: I lager (kan restnoteras)

Artikelnr: SKU-1274 Kategori:

Jetway ITX kort baserad på Intels Cedar Trail arkitektur. Moderkortet är är fläktlöst och fullmatat med funktioner såsom 3 st RS232 (1 port 2 headers), 1 RS232/422/485 header, HDMI, PCIe mini card slot, PCI slot, CFast slot, GPIO slot, LVDS, LPT etc.

Processor 1.6 GHz Intel Atom N2600 (dual core med Hyperthreading)
Chipset Intel NM10
System Memory 1 DDR3 800/1066 SO-DIMM
Up to 2 GB of memory
Graphics Integrated Intel GMA 3650(640MHz)
Expansion Slots PCI
PCI Express Mini Card
Onboard IDE None
Onboard Serial ATA 1 SATA (3 Gb/sec.) connector
2 SATA (6 Gb/sec.) connectors
Onboard CFast 1 CFast slot
Onboard USB 7 USB 2.0
Onboard LAN Realtek RTL8111E 10/100/1000
Onboard Audio Realtek ALC662 5.1 channel HD audio
Back Panel I/O 3 USB 2.0 ports
1 RS-232 COM port
1 HDMI port
1 LAN port
1 Audio jack: line-out and S/PDIF-out (optical)
1 12-volt DC jack
Onboard I/O Connectors 4 USB 2.0 via 2 pin headers
3 SATA connectors
2 RS-232 COM pin headers
1 RS-232/422/485 pin header
1 LPT pin header
1 Front panel audio pin header
1 Front panel pin header
1 PS2 (keyboard/mouse) pin header
3 Fan pin headers
1 VGA header
2 LVDS pin headers (18/24-bit, single-/dual-channel)
2 LVDS inverters
1 S/PDIF-out pin header
1 GPIO pin header
1 CD audio-in pin header
1 Speaker pin header
1 Power LED pin header
1 P4 power connector (input)
1 Berg power connector (for peripheral power)
System Monitoring & Management Power Management, Wake on USB, Wake on keyboard, Wake on mouse, Wake on LAN, Wake on serial port, Fan speed control, Voltage range monitoring
Operating Temperature 0ºC ~ 60ºC
Form Factor Thin Mini-ITX (17 x 17 cm, <20 mm z-height)
Includes Driver CD
1 RS-232 COM header cable
SATA power cable (Molex to 2 SATA and 1 Berg)
1 Backplate
2 SATA cables
User manual
Recommended Applications Web kiosk, Point-of-service, Basic digital signage, Industrial automation
Warranty 2 years; item can be returned for warranty to the manufacturer only
