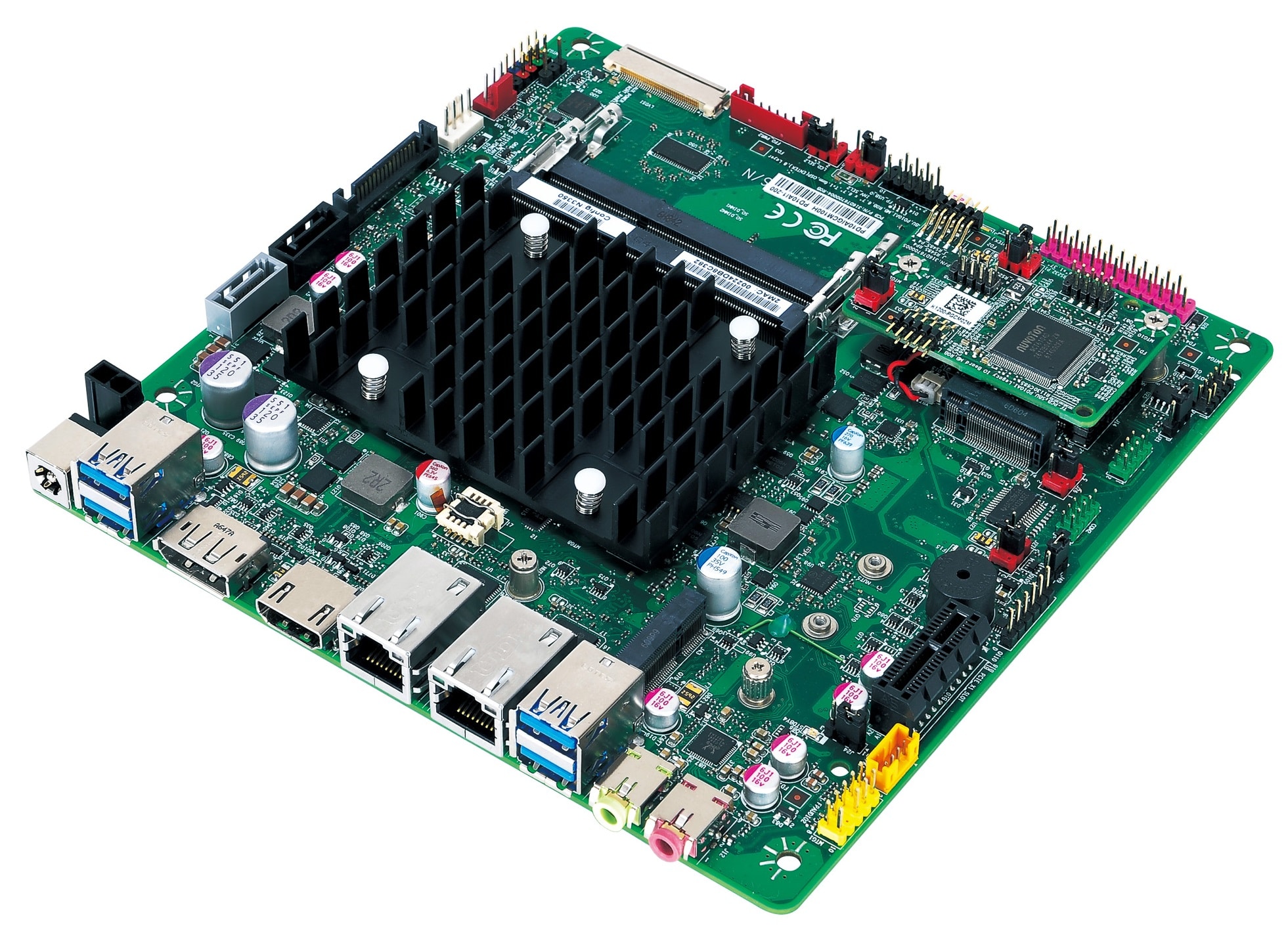

ITX moderkort med bland annat dubbla LAN portar, CPU med AES stöd och anpassat för både låg profil och normal chassihöjd. Kortet är ett industriklassat och är extremt stabilt och pålitligt. Används lika ofta som brandvägg (med tex pfSense) s0m arbetsstation (med tex Windows eller Linux).
MECHANICAL | FORM FACTOR | Mini-ITX: 6.7″ x 6.7″ (170 mm x 170 mm) | |
SYSTEM | PROCESSOR | Intel® Apollo Lake-M N3350 | |
CHIPSET | Intel® SoC Integrated | ||
SYSTEM MEMORY | DDR3L 1866 MHz / 2 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | ||
GRAPHICS | Intel® HD Graphics | ||
ETHERNET | 2 x Intel® I211-AT Giga LAN | ||
AUDIO | Realtek® ALC283 | ||
I/O CHIPSET | Nuvoton NCT6793D | ||
TPM | Nuvoton NPCT650AAAWX TPM2.0 (Optional) | ||
EXPANSION SLOT | M.2 2280 / 2260 / 2242 B key (USB, SATA) / PCIe 2.0 X1 slot / M.2 2230 E key (PCIe, USB 2.0) | ||
BIOS | AMI BIOS | ||
H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | ||
WATCHDOG TIMER | 1~255 steps by software program | ||
SMART FAN CONTROL | CPU Fan / System Fan | ||
GRAPHICS | VGA | – | |
DVI | – | ||
HDMI | Up to 4K (3840 x 2160) @30 Hz | ||
DISPLAYPORT | Up to 4K (4096 x 2160) @60 Hz | ||
LVDS | Up to 1920 x 1200 @60 Hz | ||
eDP (Option) | Up to 4K (3840 x 2160) @60 Hz | ||
REAR I/O | USB | 4 x USB 3.0 | |
DISPLAY I/O | 1 x HDMI 1.4 / 1 x DisplayPort 1.2 | ||
AUDIO I/O | 1 x Mic-in / 1 x Line-out | ||
LAN I/O | 2 x RJ-45 | ||
SERIAL PORT | – | ||
PS/2 PORT | – | ||
OTHERS | DC-in Jack 8-24V (2.5 mm / ID, 5.5 mm / OD) | ||
INTERNAL CONNECTORS | STORAGE | 2 x SATAIII (1 x SATA is multiplexed with M.2 port) | |
USB | 2 x USB 2.0 | ||
DISPLAY I/O | 1 x Backlight Connector / 1 x LVDS / 1 x eDP | ||
AUDIO I/O | 1 x Stereo Speaker Header / 1 x Audio Header (Front Panel Mic-in & Line-out) | ||
SERIAL PORT | 2 x RS232 | ||
PARALLEL PORT | 1 x Parallel Port Header (Optional for MiAPI Header) | ||
GPIO | 1 x MiAPI Header (Programmable. Support 10-bit GPIO) | ||
FAN | 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header | ||
POWER | 1 x AT / ATX Mode Select Jumper / 1 x 2-pin Power Connector | ||
OTHERS | 1 x CMOS Jumper / MiAPI: Programmable header (support 10 x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) with API library supported for Windows OS / 1 x Legacy I/O Board Header (Optional Legacy I/O Board for extra 2 x RS232 and 2 x RS232 / 422 / 485 expansion) | ||
POWER REQUIREMENT | POWER INPUT | DC-in 8~24V / 2-pin Internal Power Connector + DC Jack | |
ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) | |
STORAGE TEMPERATURE | -20 ~ 80°C (-4 ~176°F) | ||
OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
CERTIFICATION | CE / FCC Class B | ||
OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 2 x I/O Bracket (Half and Full Height) / 1 x Quick Installation Guide |
