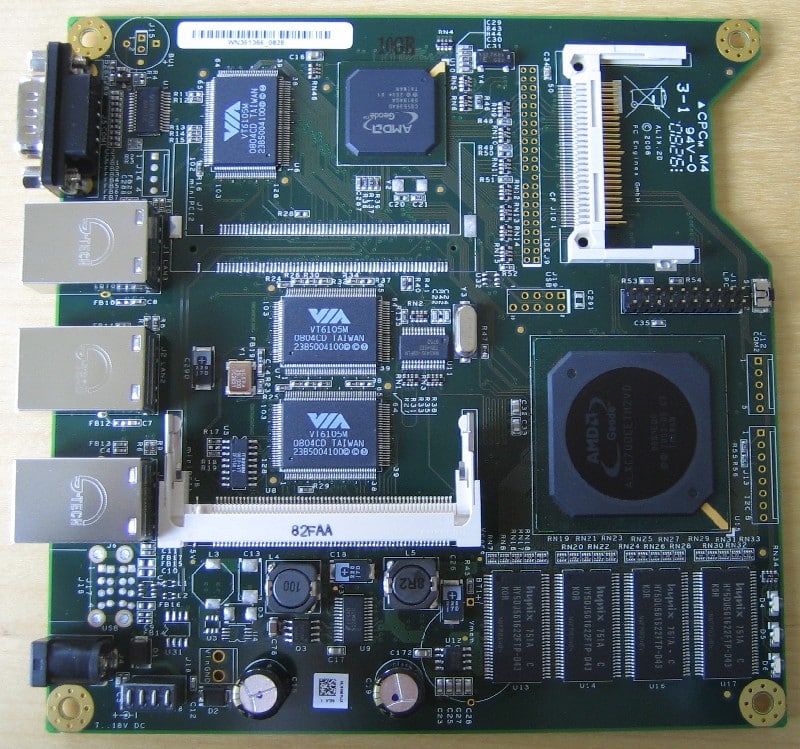

alix2d1 = 3 LAN / 1 miniPCI / LX700 / 128 MB
SPECIFIKATION:
- CPU: 433 MHz AMD Geode LX700 (alix2d1)
- DRAM: 128 MB DDR DRAM
- Storage: CompactFlash socket
- Power: DC jack or passive POE, min. 7V to max. 20V
- Three front panel LEDs, pushbutton
- Expansion: 1 miniPCI slot, LPC bus
- Connectivity: 3 Ethernet channels (Via VT6105M 10/100)
- I/O: DB9 serial port

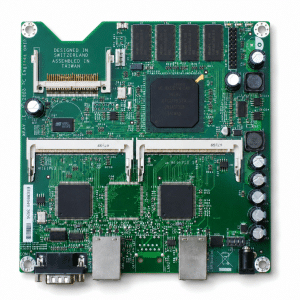

- Board size: 6 x 6″ (152.4 x 152.4 mm) – same as WRAP.1E
- Firmware: tinyBIOS
