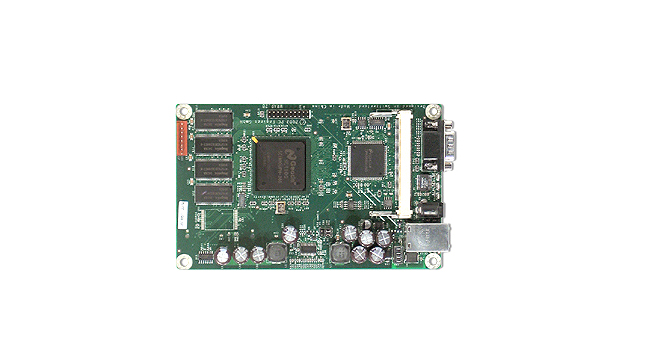

Wireless Router Application Platform 1LAN/2 MiniPCI 100/160MM
The new PC Engines WRAP system board gives network OEMs a cost-effective platform for their value-added software, such as wireless routers, firewalls, load balancers, VPN, industrial Ethernet, or other special purpose network devices.
Performance: 233 or 266 MHz National Geode SC1100 CPU
Memory: 64 MB SDRAM.
Storage: Operating system and application stored on CompactFlash card (not included).
Power: Not much ! About 3 to 5W at 12V DC (excluding miniPCI cards), supplied through DC jack or passive power over Ethernet. Acceptable range +7V to +18V DC.
Management: Watchdog timer built into CPU; LM77 thermal monitor stops system on excessive temperature.
User interface: Three front panel LEDs, one pushbutton switch, can be controlled through CPU GPIO pins.
OEM expansion: LPC bus for adding serial ports, ISA style I/O etc. I2C bus for user interface, software lock devices etc.
OEM options: DRAM size, CPU speed, Ethernet, serial, front panel LEDs and switch, custom BIOS adaptation, custom footprints. Contact PC Engines for details !
Connectivity: 2 or 3 Ethernet channels (National DP83816), 2 or 1 miniPCI slots (cards not included), 1 serial port (console).
Software: tiny BIOS on board. Operating system and application software to be supplied by customer. Examples: Monowall and LEAF have been ported to WRAP
