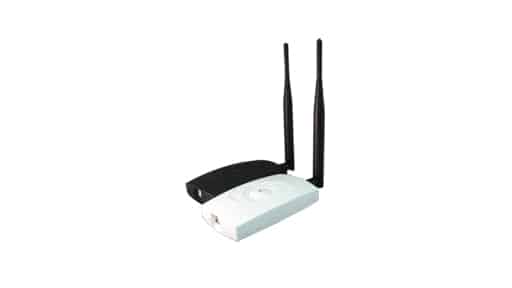

USB WLAN High-Power 54Mbps (800mW) med löstagbar antenn

495.00kr  396.00kr ex. moms

Tillgänglighet: I lager (kan restnoteras)

Artikelnr: SKU-1235 Kategori:

Ett USB anslutet WLAN kort med löstagbar antenn och effekt på hela 800mW. Löser de flesta problem med dålig mottagning för trådlösa nätverk.

Features:

  • IEEE 802.11g/b standard
  • Up to 54Mbps high data-rate and 800mW high output power
  • USB 2.0 Interface and UPnP
  • Supports 64/128-bit WEP encryption, advanced WPA/WPA2/802.1x for WLAN security
  • Support SoftAP function – allows user to create AP function at your computer
  • Replaceable antenna – user can change to higher-gain antenna

Specification:

Standard
IEEE 802.11g/b

Interface

USB rev. 2.0 A-Type

Frequency Band

2.400GHz ~ 2.484GHz

Radio type

IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK)

IEEE 802.11b: DSSS(CCK/DQPSK/DBPSK)

Data Rate

802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps

802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back

Access Protocol

CSMA/CA

Security

64/128bit WEP

WPA (TKIP with IEEE 802.1x)

WPA2 (AES with IEEE 802.1x)

RF Output Power(Typical)

802.11g: up to 23 ± 1 dBm

802.11b: up to 29 ± 1 dBm

Sensitivity

-76dBm @ 802.11g

-85dBm @ 802.11b

Power consumption

Transmission/Reception: 290mA/240mA at 5VDC

Antenna

One detachable 5dbi antenna (SMA connector)

Dimension (mm)

113(L) x 71(W) x 18(H) mm(not including antenna)

Weight

120g

Operation Temperature

0°C ~ 55°C ambient temperature

Storage Temperature

-20°C ~ 70°C ambient temperature

Humidity

10% ~ 90% (Non-condensing)

Driver support

Windows® 98SE, ME, 2000, XP 32/64, Vista 32/64
