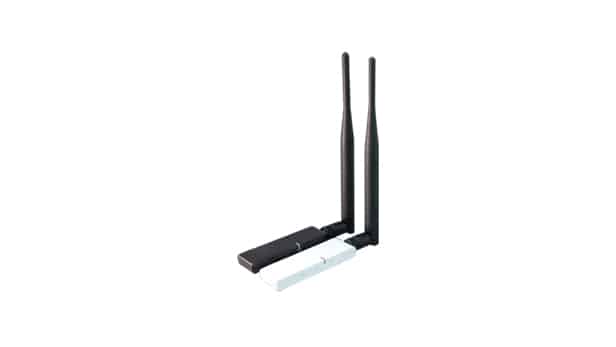

Ett USB anslutet WLAN kort med löstagbar antenn och kompakt design. Löser de flesta problem med dålig mottagning för trådlösa nätverk. Lämpligt val i sammanhang där man har en dator (tex bärbar) som har ett WLAN kort utan möjlighet att påverka antennvalet/styrkan.
Features:
- High-power solution provides you larger wireless range and enhance mobility of usage
- IEEE 802.11g/b standard
- Up to 54Mbps high data-rate and 200mW high output power
- USB 2.0 Interface and UPnP
- Support 64/128-bit WEP encryption and advanced WPA/WPA2 for WLAN security
- Support SoftAP function -allows user to create AP function at your computer
Specification:
| Standard |
IEEE 802.11g/b |
|
Interface |
USB rev. 2.0 A-Type |
|
Frequency Band |
2.400GHz ~ 2.484GHz |
|
Radio type |
IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK) |
|
IEEE 802.11b: DSSS(CCK/DQPSK/DBPSK) |
|
|
Data Rate |
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps |
|
802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back |
|
|
Access Protocol |
CSMA/CA |
|
Security |
64/128bit WEP |
|
WPA (TKIP with IEEE 802.1x) |
|
|
WPA2 (AES with IEEE 802.1x) |
|
|
RF Output Power(Typical) |
802.11g: up to 20 ± 1 dBm |
|
802.11b: up to 23 ± 1 dBm |
|
|
Sensitivity |
-68dBm @ 802.11g |
|
-80dBm @ 802.11b |
|
|
Power consumption |
Transmission/Reception: 290mA/240mA at 5VDC |
|
Antenna |
One detachable 5dbi antenna (SMA connector) |
|
Dimension (mm) |
84(L) x 25(W) x 10.5(H) |
|
Weight |
45g |
|
Operation Temperature |
0°C ~ 55°C ambient temperature |
|
Storage Temperature |
-20°C ~ 70°C ambient temperature |
|
Humidity |
10% ~ 90% (Non-condensing) |
|
Driver support |
Windows® 98SE, ME, 2000, XP 32/64, Vista 32/64 |
