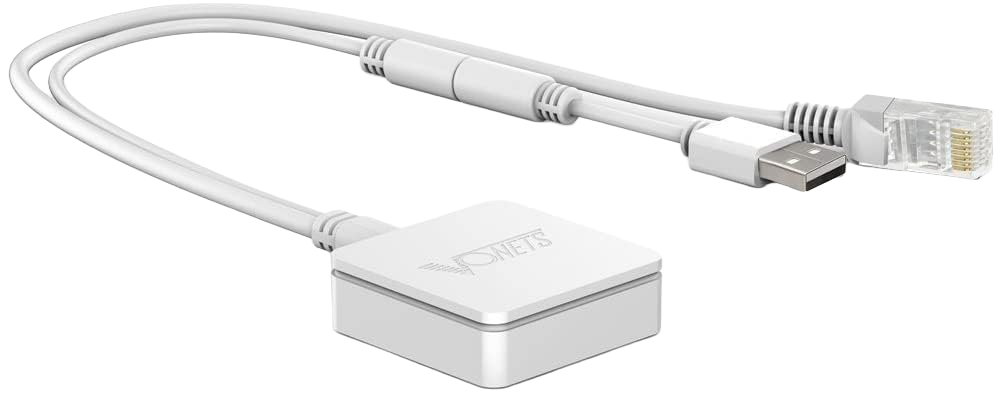

En fantastisk produkt som är den minsta i sitt slag (43mm x 43mm x 14mm). Som brygga är produkten tex ett bra alternativ för att få en trådlös anslutning till en maskin som annars bara har trådbundet nätverk. Används ofta av servicetekniker för industrimaskiner. Som minirouter används den ofta på hotellrum eller tillfälliga kontor. Som AP eller repeater är det oftast i trånga utrymmen som denna produkt används.
Går att spänningsmata med 5 – 15V DC (USB eller tex AC/DC laddare).
SPECIFIKATION:
| Hardware | |
| Protocol Standard | IEEE 802.11g, IEEE 802.11b, IEEE 802.11n |
| Transmission rate | 150Mbps |
| Interface | 10/100M adaptive Ethernet female port Dedicated power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable. Ethernet cable and Ethernet LAN/WAN interchangeable. |
| Button | Reset button (press 5 Seconds) |
| LED | Ethernet port status Lights (cable status & work mode) WiFi status WiFi connection statem (green for success) |
| Antenna | Built-in Intelligent Omnidirectional antenna |
| Size | 43mm x 43mm x 14mm (L x W x H) |
| Wireless Related | |
| Basic functions | Wireless Switch SSID Broadcast switch. Channel option: 1-14. WiFi mode option: 802. 11n only, 802.11 B/G/n mixed, 802.11 B/G mixed, 802.11G only, 802.11B only. WiFi Hotspot scan automatically. WiFi Hotspot memory. |
| Working Mode | WiFi Intelligent bridge: – AP Station mode (WiFi hotspot), suitable for hotel room usage – AP Client mode (WiFi client), suitable for IP TV, STBs. – Repeater mode (WiFi signal repeat), it can extand the distance of WiFi transfer. |
| WiFi router mode | |
| Wireless security | WiFi MAC address filter WiFi Security function switch. 64/128/WEP encryption & WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism |
| Wired Related | |
| WAN port Setting | WiFi router mode: WAN port connection type (PPPoE, Dynamatic IP, Static IP, L2TP, PPTP). DDNS Client |
| Firewall | IP and MAC address binding against ARP attacks (WiFi router mode support). IP address filter (WiFi router mode support). Domain filter (WiFi router mode support). Mac address filter. |
| Forward rules | Port forwarding (WiFi router mode support) Virtual Service (WiFi router mode support) DMZ Host |
| System function | Time service Firmware upgrade Configure file import and export Device reboot Reset factory Administrate account and password revise |
