En ultra kompakt UPS kontroller som passar bra i embedded applikationer för såväl mobilt bruk (fordonsdatorer) som stationära mini datorlösningar med hög tillförlitlighet.
Mini UPS 100 12V DC micro UPS system / battery backup system

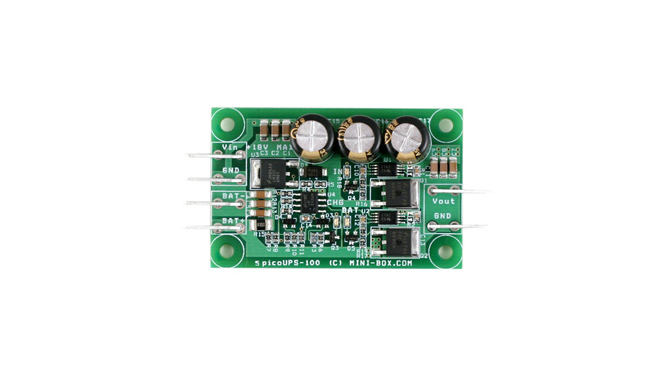

This mini UPS is a small yet powerful UPS (uninterruptible power supply) solution. The product was conveniently design to be compatible with quarter brick PSU standard (58 x 36mm).
The UPS ensures uninterrupted power for your electronics by automatically switching in between a DC input source (15-18V) and a Lead Acid (SLA battery). The switching in between the power sources is instantaneous, thus allowing smooth, uninterrupted device operation. The picoUPS-100 also has a built-in, two stage battery charger unit.
The mini UPS has been specifically designed for uninterruptible small/medium power PC operation, where “always on” operating is required. Applications for the this UPS includes a wide range of systems including servers and telecom and high availability systems. These applications often have either N+1 redundant power supplies, redundant power buses, or both.
FEATURES:
– 12V DC micro UPS system
– 12V DC battery backup
– Build two stage SLA charger
– Handles up to 6A loads (10A peak)
– Low loss, “diode OR” MOSFETs
– Quarter Brick (58x36x20mm)
– 1U server compliant
– ROHS compliant
