Features
Performance
- Over 5x bandwidth increase compared to existing 802.11a/b/g solutions; delivers up to 300 Mb/sec. of bandwidth
- Wi-Fi Personal Area Network capabilities
- Low-power consumption
- Wireless support for Intel Active Management Technology
- Supports Intel Wireless Display
- Easy-to-use Intel PROSet v12.0 WLAN Software
- Support for Cisco Compatible Extensions
Please note: This item does not come with the screws for installing or mounting to a mainboard. Most mainboards come with the required screws, but not all. To purchase the mounting screws, see drop-down menu above.
Please note: This is a half-height card which will not mount in most Mini-ITX mainboards. Please select the half-height to full-height PCIe Mini Card adapter from the drop-down menu above.
Please note: In order to take full advantage of 802.11n, you will need to choose two antennas from the options above. For system integration, be aware that most Mini-ITX cases only have one antenna punchout, although some mainboard I/O shields have additional punchouts. For customization options, please contact our technical sales team at 802-861-2300 x1.

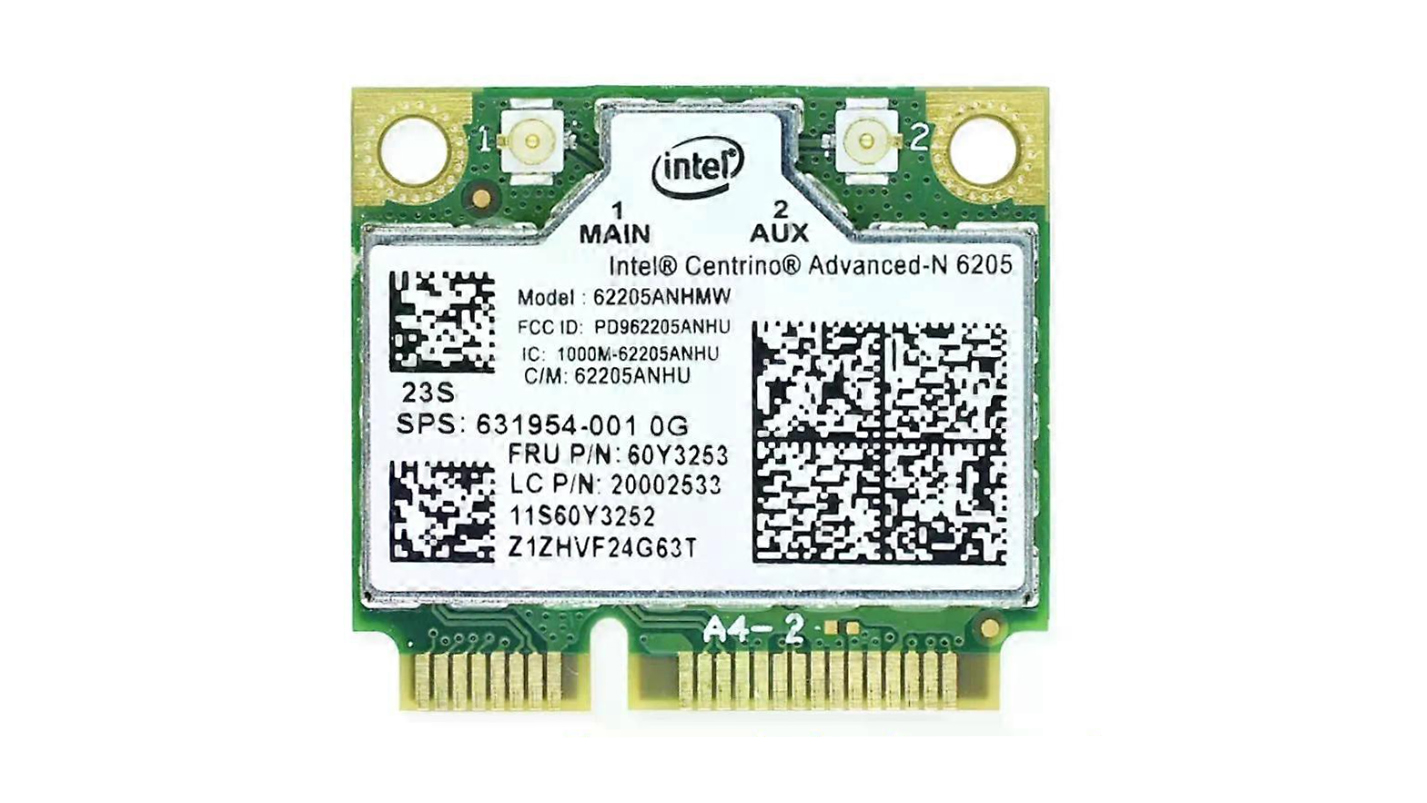

| INT-6205 Specifications | |
| Standards | IEEE 802.11 a/b/g/n |
| Interface | PCIe Mini Card (half-height) |
| Connectors | Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066 |
| Security | WPA, WPA2, AES-CCMP 128-bit, WEP 128-bit and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP, EAP-FAST, EAPTLS, EAP-TTLS, EAP-AKA, PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2, CISP, FIPS, FISMA |
| Frequency Range | 5.15 GHz – 5.85 GHz (802.11a/n) 2.400 – 2.4835 GHz (802.11b/g/n) (dependent on country) |
| Operating Voltage | 3.3 V |
| Operating Temperature | 0°C ~ 80°C |
| Dimensions (w x h x d) |
50.95 x 30.00 x 4.50 mm 2.00″ x 1.18″ x 0.18″ |
| Supported OS | Windows XP 32/64-bit, Windows 7 32/64-bit, Linux |
