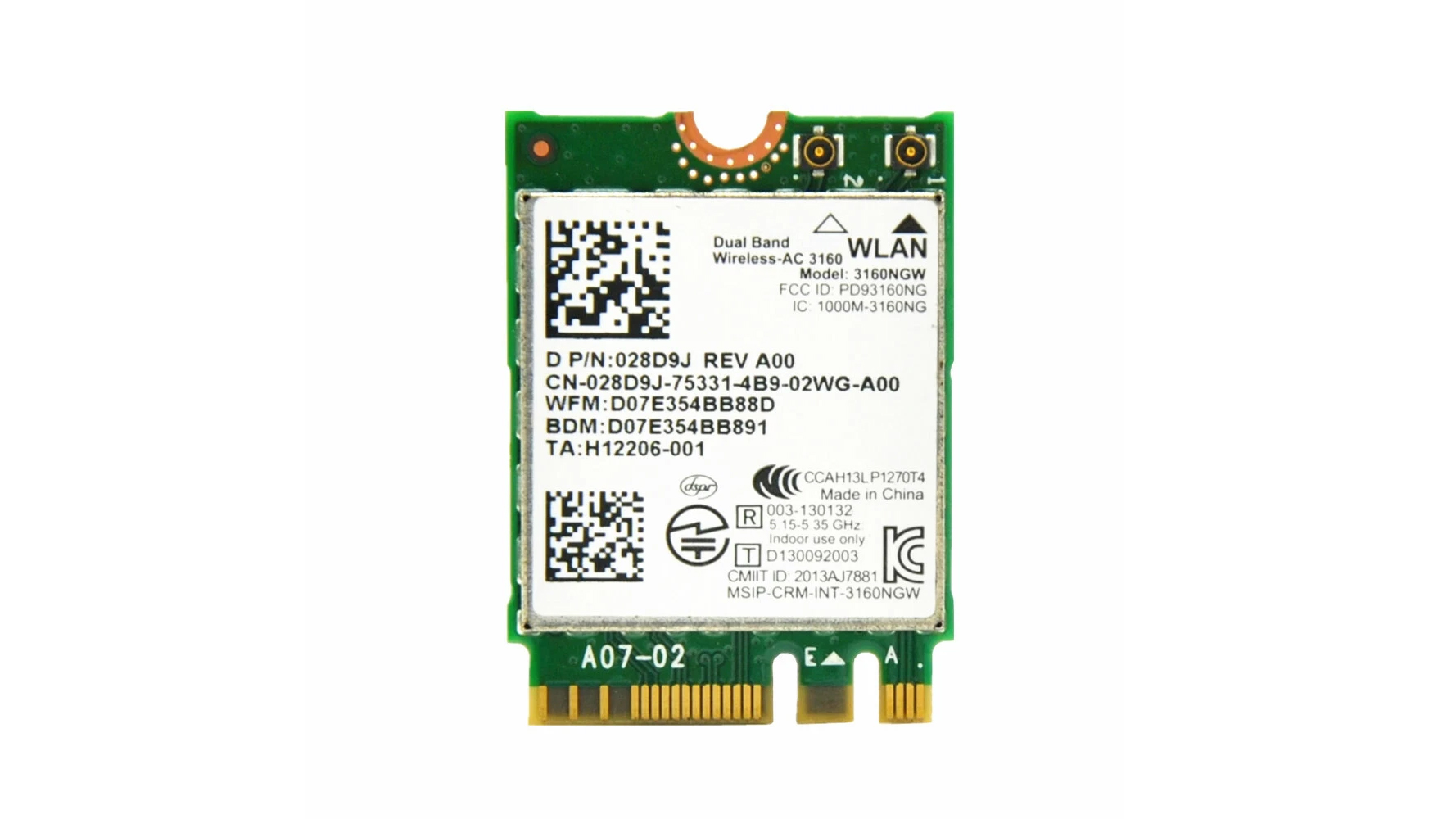

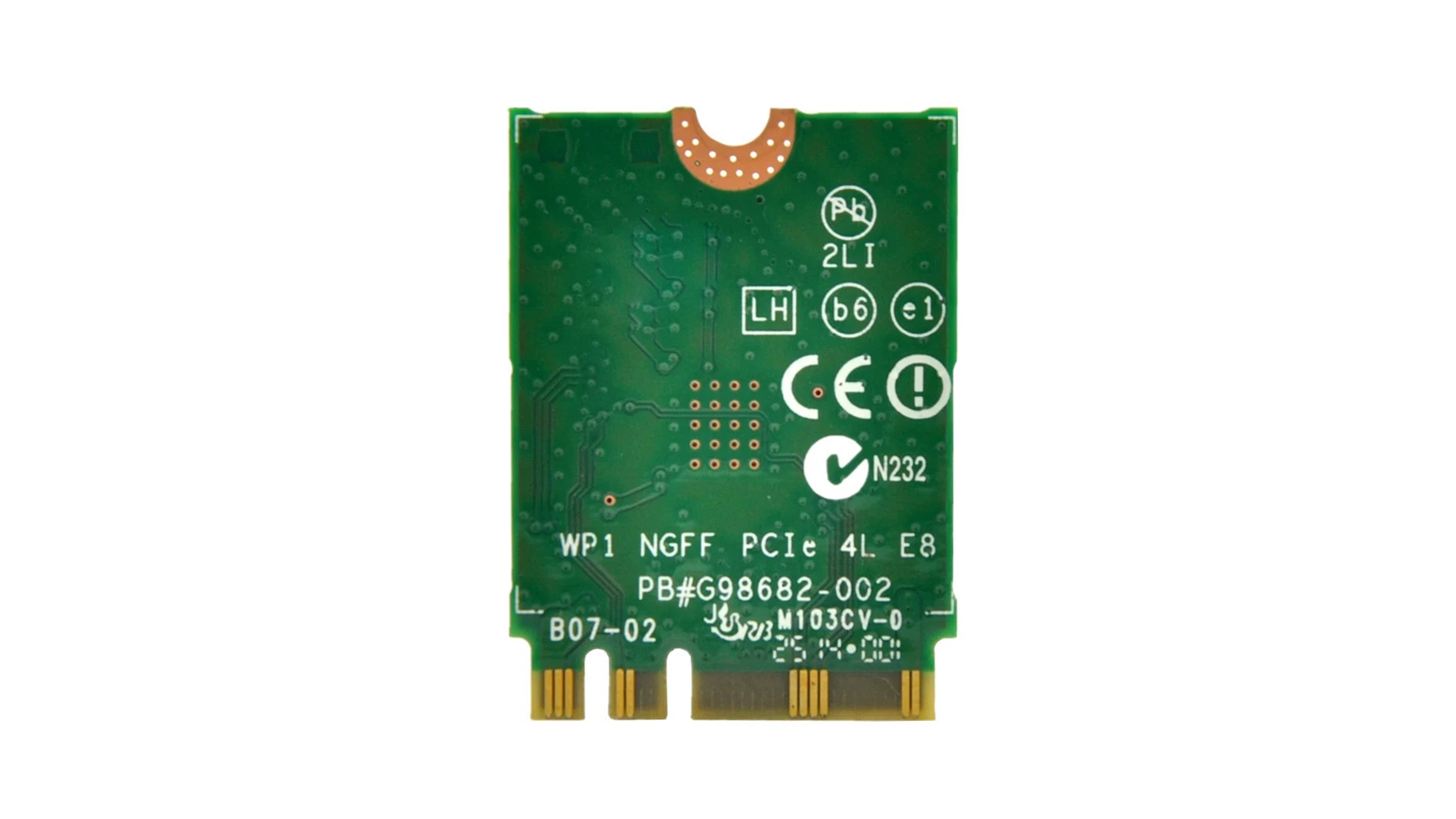

Integrerad WiFi-adapter för bärbara datorer med 802.11AC och Bluetooth 4.0. Kortet har M.2 2230-slot anslutning och antennkablage kopplas in via dubbla I-PEX MHF4.
- Dimensions (H x W x D)HMC: 26.80 mm x 30 mm x 2.4 mm Max (Top Side) / 1.34 mm Max (Bottom Side) Single SidedM.2 2230: 22 mm x 30 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]M.2 2226: 22 mm x 26 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]
- WeightHMC: 3.0gM.2 2230: 2.3gM.2 2226: 2.2g
- Diversity Supported
- Radio ON/OFF ControlSupported in both hardware and software
- Connector interfaceHMC: PCIe, USBM.2: PCIe, USB
- LED OutputOn/Off
- Operating Temperature (Adapter Shield)0ºto +80°C
- Humidity Non-Operating50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
- Operating SystemsMicrosoft Windows* 7, Microsoft Windows* 8.1, Linux* (most features not available on Linux)
- Wi-Fi AllianceWi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM-PS2, WPA*, WPA2*, WPS2*, Protected ManagementFrames,Wi-Fi Direct* for peer to peer deviceconnections, Wi-Fi Miracast* as Source.
- IEEE WLAN StandardIEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
- ArchitectureInfrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
- Roaming5Supports seamless roaming between respective access points802.11b, 802.11g, 802.11a/b/g, 802.11a/b/g/n, and 802.11ac)
- Bluetooth®Dual Mode Bluetooth®2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE
