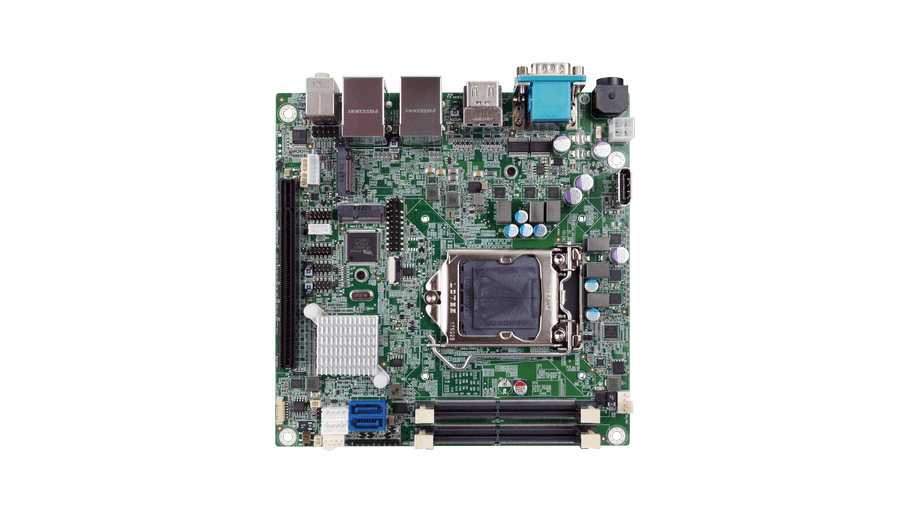

Industriellt ITX moderkort baserat på Intel socket 1151 8 gen Intel processorer. Kortet är fullmatat med funktioner såsom 3 st RS232, 1 st RS422/485, dubbla LAN. dubbla grafikportar, digital I/O, I²C, 8 USB portar och SM Bus ! Kortet har dessutom inbyggd DC/DC enhet – Ni behöver alltså endast en extern AC/DC nätdel.
SPECIFIKATION :
| Spec Item | Description |
|---|---|
| Dimensions | |
| Dimensions | 170mm x 170mm |
| Display | |
| Display Output | Dual independent display 2 x HDMI (up to 1920×1080@60Hz) 1 x internal Displayport (up to 4096×2304@60Hz) (optional) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | 0ºC ~ 60ºC |
| Storage Temperature | -10°C ~ 70°C |
| Expansion Slots | |
| Expansion Slots | 1 x PCIe x16 1 x M.2 M key (2280, Gen2 PCIe x2 only) 1 x M.2 A Key (2230, PCIe x1 & USB 2.0) |
| I/O Interface | |
| Audio | Realtek ALC662 HD codec 2 x Audio Jack (Lin-out, Mic-in) 1 x Front audio (2×5 pin) |
| Digital I/O | 8-bit digital I/O (2×5 pin) |
| Ethernet | LAN1: Realtek RTL8111H PCIe GbE controller LAN2: Realtek RTL8111H PCIe GbE controller |
| I/O Interface | |
| I/O Interface | 1 x Front panel(1×10 pin, Power LED, HDD LED, Power Button, Reset Button) |
| 1 x I²C(1×4 pin) | |
| 1 x Internal RS-232(2×5 pin, P=2.0) | |
| 1 x Internal RS-422/485(1×4 pin, P=2.0) | |
| 4 x Internal USB 2.0(2×4 pin, P=2.0) | |
| 1 x KB/MS(1×6 pin) | |
| 2 x LAN LED(1×2 pin) | |
| 2 x RS-232 | |
| 2 x SATA 6Gb/s(No RAID) | |
| 1 x SMBus(1×4 pin) | |
| 4 x USB 3.0 | |
| Power | |
| Power consumption | 12V@11.32A (Intel® Core™ i7-8700 up to 4.60 GHz CPU with two 8GB 2666MHz DDR4 memory) |
| Power Supply | DC 12V input 1 x External DC jack (4-pin DIN) 1 x Internal power connector (2×2 pin) Support AT/ATX mode |
| System | |
| Chipset | Intel® H310 |
| CPU | LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (35W/65W) |
| Graphcis Controller | Intel® HD Graphics Gen9 Engines with Low power 16 execution unit, supports DX11.3/12, OpenGL 4.3/4.4/4.5and OpenCL1.2/2.0/2.1 |
| Memory Max. | Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots supported up to 64GB |
| Weight | |
| Weight | GW:900g / NW:400g |
