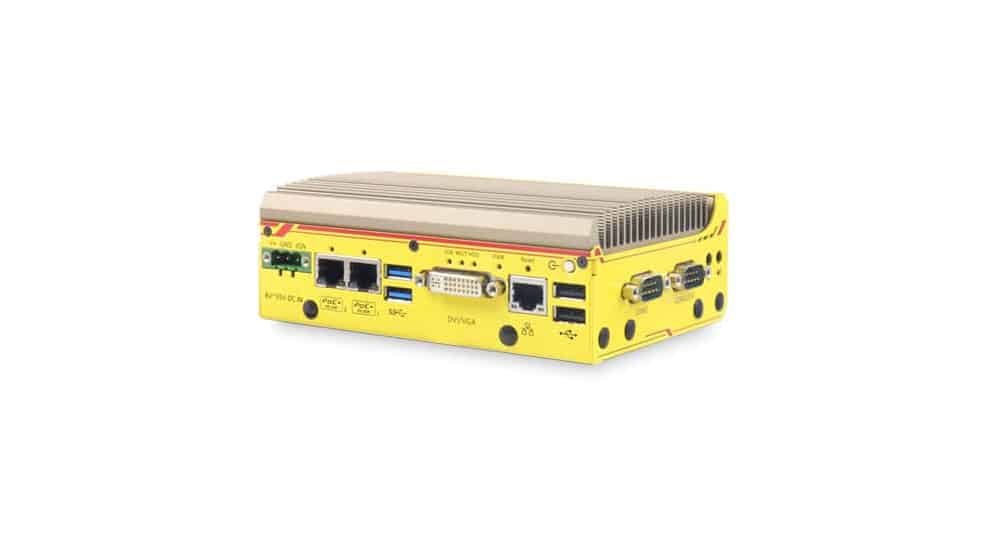

Fordonsdator Intel Apollo Lake kommunikations gateway

9,995.00kr  7,996.00kr ex. moms

Kan restnoteras

OBS! Beställningsvara, normalt 1-2 veckors leveranstid.

Fläktlöst fordonsdatorsystem helt utan rörliga delar och temperaturtåligt från -25 till +70 grader. Används ofta som en form av kommunikations-gateway i fordonet då maskinen har isolerade CAN portar, PoE+ port, standard Gigabit LAN och digitala IO portar samt serieportar (RS-232/422/485). Den flexibla inspänningen (8-35V DC), den kompakta designen och det robusta utförandet för att den passar i de flesta typer av fordon såsom båtar, bilar, lastbilar, traktorer, bussar och truckar. I paketet ingår en robust PC med i Intel® Atom™ E3950 1.6/2.0 GHz quad-core CPU, 120GB SSD och 4GB RAM.

System Core
Processor Intel® Atom™ E3950 1.6/2.0 GHz quad-core processor
Graphics Integrated Intel® HD Graphics 505
Memory Up to 8GB DDR3L-1866 (single SO-DIMM slot)

Panel I/O Interface
Ethernet 3x Gigabit Ethernet ports by Intel® I210 GbE controller
POE IEEE 802.3at PoE+ on port #2 and #3
Video Port VGA and DVI dual display outputs via DVI-I connector
Serial Port 1x Software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/COM3/COM4) or 1x RS-422/485 port (COM2)
USB 2x USB 3.0 ports
2x USB 2.0 ports
Audio 1x Mic-in and 1x speaker-out
CAN Bus 1x isolated CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO

Internal I/O Interface
M.2 1x M.2 B key socket for 3G/4G option with USIM support
Mini-PCIe 3x full-size mini PCI Express sockets with USIM support

Storage Interface
mSATA 1x half-size mSATA port
1x full-size mSATA port

Power Supply
DC Input 8~35 VDC DC input
Input Connector 3-pin pluggable terminal block for DC input (IGN/GND/V+)

Mechanical
Dimension 153 mm (W) x 108 mm (D) x 56 mm (H) (POC-351VTC)
153 mm (W) x 108 mm (D) x 68 mm (H) (POC-351VTC-70)
Weight 1.0 kg
Mounting Horizontal wall-mount (standard)
Vertical wall-mount (optional)

Environmental
Operating Temperature -25°C ~ 70°C */**
-40°C ~ 70°C (optional) */***
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ mSATA, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ mSATA, according to IEC60068-2-27)
EMC E-Mark for in-vehicle applications
CE/FCC Class A, according to EN 55032 & EN 55024
