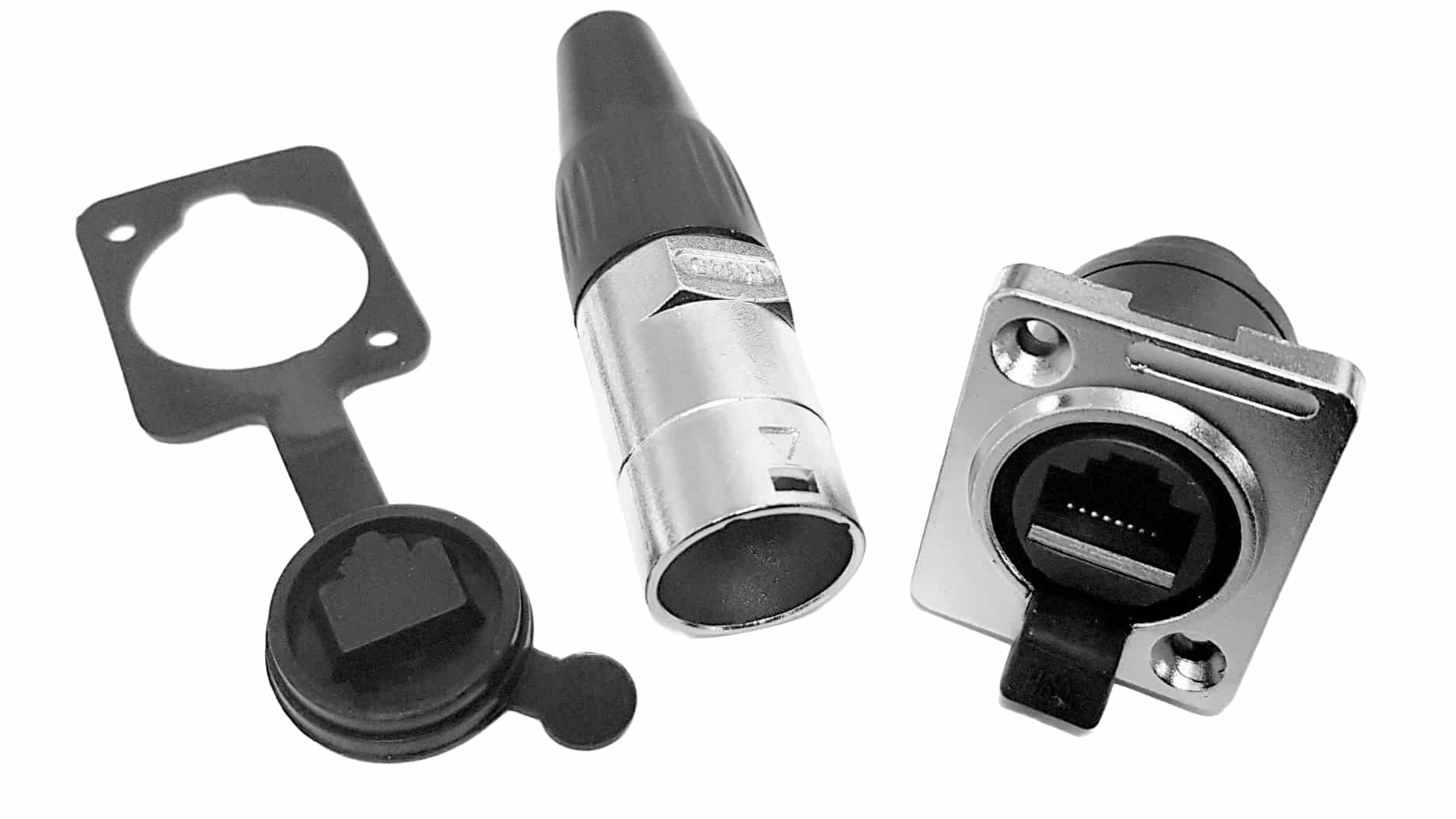

Paket med kablagehylsa (som man sätter över en klämd RJ45 kontakt) och ett chassidon med gummilist. På chassidonets insida ansluts en standard ethernet kabel med RJ45 anslutning.
Specifications:
Connecting mode: Plug/unplug,
Protection level: IP65
Cable specification: 0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range: Φ5.5mm ~Φ7mm
Contact diameter×Qty: 8
Current rating(A): 1.5A
Operating voltage(AC.V.rms): 500V
Withstand voltage(AC.V)1min: 2500V
Contact resistance: <1mΩ
Insulation resistance: >500MΩ
Durability: ≥500 mating&unmating cycles
Temperature rating: -40°C~80°C
Method of connecting cable: Solder
Prevent the combustion level: UL94-V0
Temperature rise: 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.
Material:
Shell&insulated parts: High performance engineering plastics
Hardware metal: Zinc alloy(pearl hard chromium)
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel
Main characteristics:
– Sealed against dust and fluid (IP65)
– Vibration resistance,impact resistance,stretching resistance
– With one hand, can quickly insert or pull out
