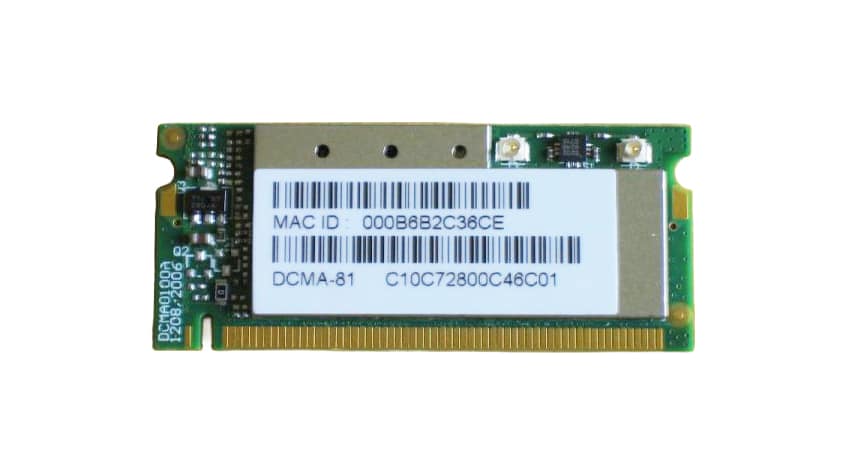

Part numbers | dcma81 = DCMA81 miniPCI radio card, RoHS compliant |
Chipset | Atheros AR5414 |
Connector | u.fl, compatible with PC Engines I-PEX pigtail cables. Pigtail and antenna must be ordered separately. |
Note | Wireless radio cards are ESD sensitive, especially the RF switch and the power amplifier. To avoid damage by electrostatic discharge, the following installation procedure is recommended:
|
Compliance | DCMA81 is FCC and CE tested, but these cards are intended for professional use, not end-user installation. |
Warranty | 1 year. No serial number label, no warranty. To read the date code, see label. Warranty identification: ex. C03951500112C01 / C039-Model Name / 5-2005 Year / 15-Week15 / 00112C01-Sequence number |
