GENERAL INFORMATION:
Frequency Band:
802.11a: 5.15~5.35GHz, 5.47~5.725GHz, 5.725~5.825GHz
802.11b/g: 2.400~2.484GHz
Operating Channels:
802.11a: 21 for North America
802.11b/g: 11 for North America
Regulation Certification: FCC Part 15
Media Access Protocol: Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)
Modulation Technology: OFDM: DBPSK, DQPSK, CCK, BPSK, QPSK, 16-QAM, 64-QAM, DSSS
Security:
64/128-bit WEP Encryption
802.1x Client Support (EAP-TLS & EAP-TTLS)
WPA/WPA2 Protected Access (TKIP & AES)
Standard: 802.11a / 802.11b / 802.11g / 802.1x / 802.11i / 802.11h / 802.1e /802.1j

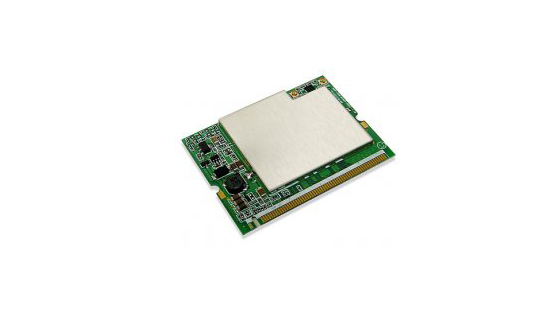

Form Factor: Mini-PCI TypeIIIB
Dimensions: 59.60mm x 44.45mm
Antenna Connector: U.FL x2
Operating Voltage: 3.3V +/- 0.15V
Temperature Range: Operation 0ºC to 55ºC / Storage -20ºC to 70ºC
Humidity (Non-condensing): 5%~95% Typical
RADIO FREQUENCY BAND:
Receive Sensitivity (Typical):
802.11a (5.15~5.82GHz)
6Mbps @ -90dBm
54Mbps @ -74dBm
802.11g (2.412~2.472GHz)
6Mbps @ -92dBm
54Mbps @ -76dBm
802.11b (2.412~2.472GHz)
11Mbps @ -92dBm
1Mbps @ -96dBm
Available Transmit Power:
802.11a (5.15~5.35 & 5.5~5.7GHz)
17 dBm @ 6~24Mbps
16 dBm @ 36Mbps
15 dBm @ 48Mbps
14 dBm @ 54Mbps
802.11a (5.725~5.825GHz)
20 dBm @ 6,9,12,18,24Mbps
19 dBm @ 36Mbps
18 dBm @ 48Mbps
17 dBm @ 54Mbps
802.11g (2.412~2.472GHz)
26 dBm @ 6,9,12,18,24Mbps
25 dBm @ 36Mbps
24 dBm @ 48Mbps
23 dBm @ 54Mbps
2.412~2.472G(IEEE802.11b)
26 dBm @ 1~11Mbps
CURRENT CONSUMPTION INFORMATION:
Continue Tx: <= 750mA
Continue Rx: <= 400mA
LINK Mode: <= 400mA
