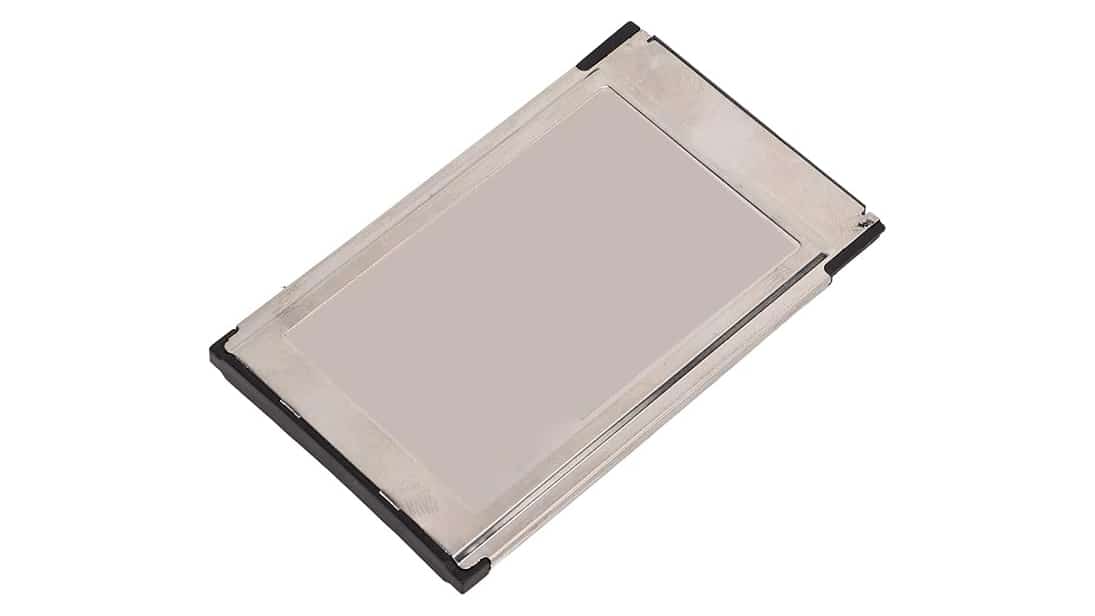

Denna disktyp brukar köpas av industriföretag som behöver reservdelar till vissa laserskärmaskiner och kantpressar. Ofta ligger operativsystem och programvara för styrsystemet på denna typ av små PC card flashdiskar. Denna ersättare kan då vara lösningen. Många försöker att installera PC Card läsare och compactflash minnen istället men det kan vara svårt att få igång och fungerar oftast inte lika bra i längden.
Features and Specifications
- Features
- Industrial Extended Temperature Range
- Easy Installation
- True IDE Mode Compatible
- PCMCIA Version 2.1/JEIDA 4.1 Compliant
- Very Rugged, Noiseless, and Auto sleep mode
- Integrated controller with dynamic defect management and error correction code
- Fully compatible in applications for PC, PDA, Application Specific Instrumentation
- No battery required for data retention
- CE Approved
- Warranty Information
- 3 Year Limited Warranty
- Performance and Data Transfer Rates
- Interface: ATA and True IDE
- Data Transfer Rate to/from Host: Up to 16.7MB/Sec. (burst)
- Controller Overhead (Command to DRQ): 2ms (max)
- Data Transfer Cycle End to Ready (Sector Write): 2ms (typical)
- Sustained Read: Up to 5MB/Sec.
- Sustained Write: Up to 5MB/Sec.
- Physical Dimensions
- PCMCIA Type II Enclosure: 85.6 x 54.0 x 5.0mm (LWH)
- Weight: 38g approximate
- Power Consumption 3.3 VCC
- DC Input Voltage: 3.3V ± 5%
- Sleep Current: 0.2mA
- Read Current: 32mA
- Write Current: 37mA
- Power Consumption 5 VCC
- DC Input Voltage: 5V ± 5%
- Sleep Current: 0.5mA
- Read Current: 40mA
- Write Current: 45mA
- Operating Environment
- Temperature operating: -40 to 85° C
- Temperature storage: -65 to 150° C
- Relative Humidity: 95% (max.) non-condensing
- Operation Vibration: 10-2000Hz @ 147 meter/sec2 (20Gs) IDE
- Operation Shock: 4903.3 meter/sec2 (2000Gs)
- Reliability
- MTBF: > 4,000,000 hours
- Data Write/Erase Endurance: 2,000,000 cycles
- Data Reliability: < 1 non-recoverable error in 1014 bits read
- Host Compatibility
- PCs, Notebooks, Palmtops utilizing Award, Databook, Phoenix, Systemsoft or any other PCMCIA Release 2.1 compliant PC Card and Socket services
- Operating System Support
- Microsoft Windows 2000, XP, Server 2003, Vista
- Microsoft Windows DOS, Window 3.x, NT, 95/98/98SE Millennium Edition
- Unix and Unix-like systems including OpenBSD, FreeBSD, NetBSD, and Linux
- Other systems including IBM OS2, FreeDOS, Application Specific OS, and many embedded operation systems
- Apple Mac OS, Darwin, and Mac OS X
