IDE till compact flash extern access

150.00kr  120.00kr ex. moms

Tillgänglighet: I lager (kan restnoteras)

Artikelnr: 010291 Kategori:

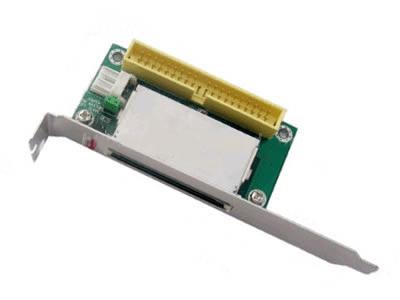

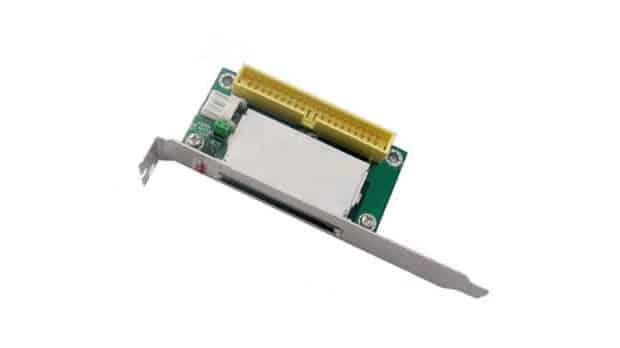

Adapter från IDE till compact flash som passar i vilket chassi som helst som tar instickskort (PCI, ISA, PCIe) av standard höjd (ej low profile). Produkten gör att man får åtkomst av compact flash kortet från datorns utsida.

Description :
The IDE to CF adapter is transparent to the operating system and does not require any drivers. With this adapter, the host PC will identify the inserted CF card as a standard IDE hard disk. As such, you can install any operating systems and the CF card will be bootable.
Specification & Features:
Back Panel & Metal Cover .
Left-side LED indicators for power-on .
Master or slave mode selection.
Compatible with Compact Flash Type I, Type II, and Micro-drive .
Four mounting holes.
40-way 2.54 mm standard IDE connector.
Compact flash socket.
+5 V floppy disk drive power connector.
Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes.
Compatible* with DOS, Windows 3.1, NT4, 98SE, Me, 2000 and XP, Vista, Unix, Linux .
Size: 74mm * 40mm .
