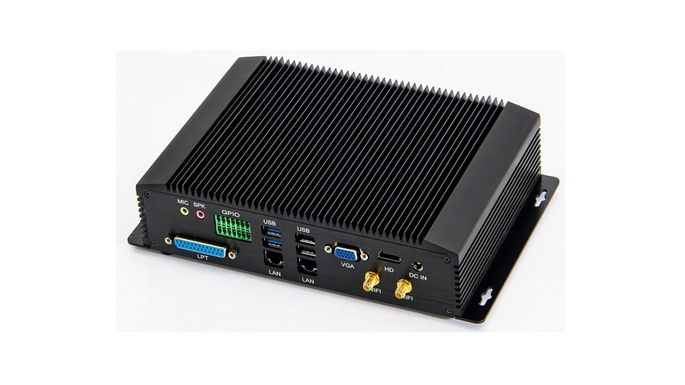

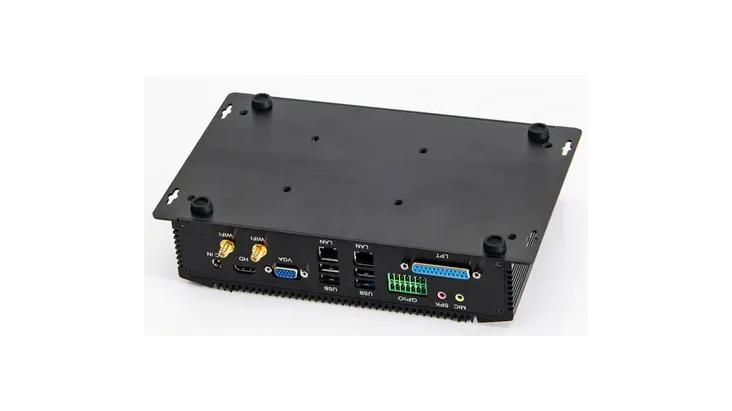

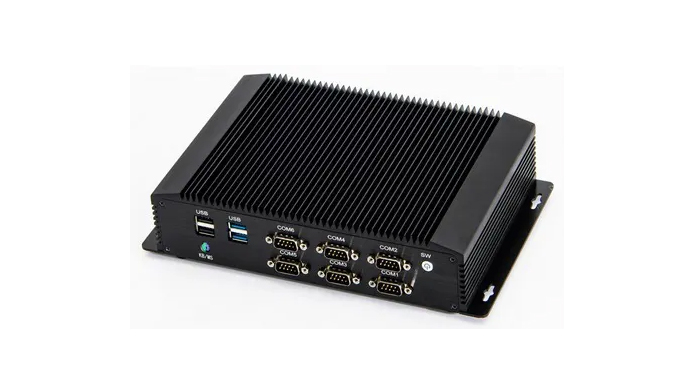

En kompakt industridator som är fullmatad med funktioner och gränssnitt. 6 st serieportar, 8 st USB portar (4 st 2.0 0ch 4st 3.0), dubbla Intel- GB LAN, 120GB industriklassad SSD och 4 GB arbetsminne samt kraftfull Intel i3 6006U processor. Till detta kan tilläggas energisnål, fläktlös, drifttestad i -10 till +60 grader C. Operativsystem tillkommer.
Maskinen är vid leverans utrustad med Intel Core i3 6006 CPU, 4GB RAM samt 120GB light industrial grade SSD.
Operativsystemsstöd Windows: 7(32/64), 8/8.1(32/64), 10(32/64).
| Chassis | Color | Svart |
| Size | 230mm*175mm*50mm(L*W*H) | |
| Structure | AI alloy Fanless design | |
| Material | Al alloy+ galvanized steel sheet | |
| Motherboard | ||
| Processor | Intel® i3 6006U/2,0GHz dual core CPU | |
| Graphics | Intel®HD Graphics | |
| Memory | Onboard 4G memory | |
| Storage | 2.5’ HDD | N/A |
| CF | N/A | |
| SSD | 120GB light industrial grade | |
| System Feature
|
Ethernet | 2* LAN(Intel i211) |
| USB | 4* USB2.0 4* USB3.0 | |
| Serial Port | 6* COM, 2 portar supportar RS485/422 | |
| Display | 1* VGA, 1* HDMI | |
| Audio | 1* MIC,1*Line-out | |
| Expansion Interface | 4G LTE communication, GPIO | |
| Indicator | 1 for power state, 1 for HDD | |
| System Control | Power switch | |
| Wireless | WIFI N std | |
| Power | Power | 12-19V DC input |
| Reliability | Installation | Desktop or wall-mounted |
| Operating T | -10°C~60°C | |
| Storage T | -20°C~70°C | |
| Relative humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5~500Hz/random operating |
