Ett komplett fläktlöst system som passar de flesta typer av industriella applikationer. Kompakt design, fin prestanda, låg energiförbrukning och massor av funktioner och gränssnitt. Dubbla Intel gigabit LAN, dubbla serieportar (RS232 / 485), möjlighet att använda dubbla bildskärmar, 6x USB portar samt SIM-kort plats (4G/5G modem är option).
I datorn ingår följande komponenter :
- Intel Core i3 N305 CPU
- 8GB RAM DDR4
- 256GB M.2 SSD hårddisk
SPECIFIKATION:
| Chassis
|
Material/Construction | Aluminium alloy + sheet metal, fanless cooling |
| Colour | Black | |
| Dimensions (LWH) | 188*164.7*53.4MM | |
| Weight (bare net weight) | 1.5KG | |
| Installation | Desktop/Wall-mounted/DIN rail (35mm) | |
| Motherboard
|
CPU | Intel®Alder Lake-N i3-N305/Turbo 3.8GHz, Octa-Core, Octa-Threaded Processor, TDP 15W |
| Display | Intel® UHD Graphics | |
| Memory | 1* SODDR4 3200MHz , support up to 16GB | |

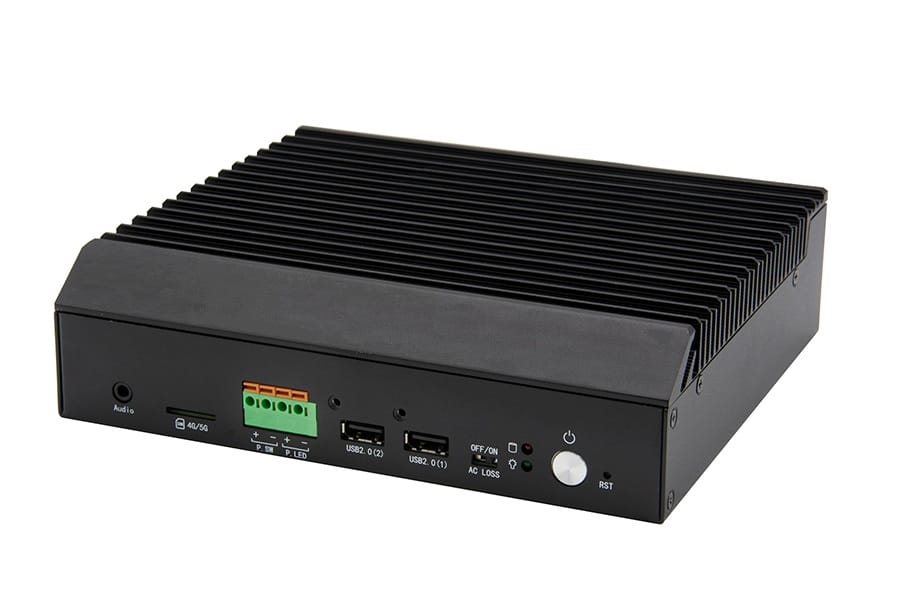

| Front Panel Connectors
|
Switches | 1*Boot Button, 1*One Touch Restore, 1*ACLOSS (power on/off toggle switch) |
| LED | 1*Power Indicator, 1*Hard Disk Indicator | |
| USB | 2*USB2.0 | |
| Audio | 1*Audio, Line out&Mic 2-in-1 | |
| Remote Switch | 1*Boot Signal, 1*Power Indicator Signal (located on the 1*4P Phoenix terminal) | |
| SIM | 1* SIM standard card slot | |

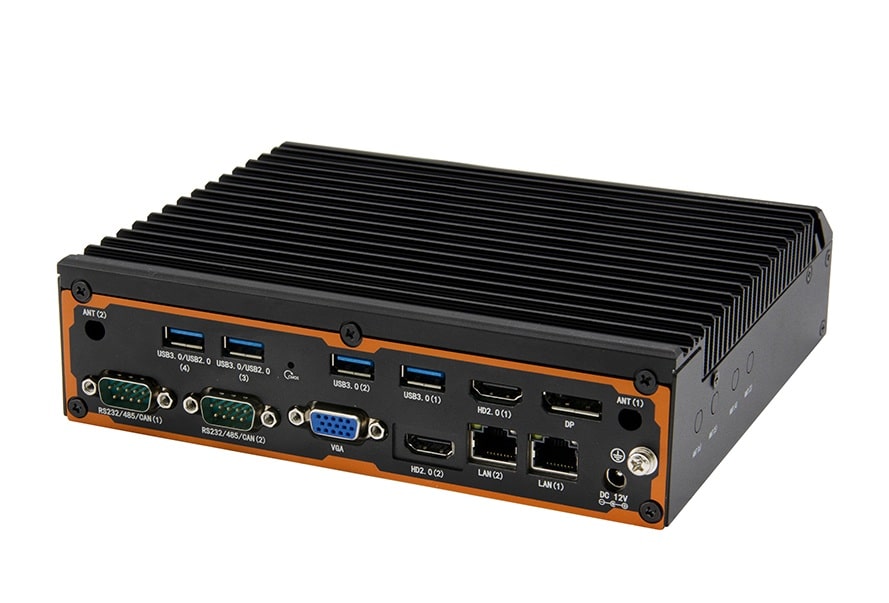

| Rear Panel Interface
|
Switch | 1*CMOS restore button |
| Display Interface
|
1*HDMI2.0(4096*2160@60Hz), 1*DP1.4(4096*2160@60Hz), 1*VGA, support triple display | |
| Remarks: If you connect the DP, it supports double display DP+HDMI(upper), if you don’t connect the DP, it supports triple display HDMI+HDMI+VGA | ||
| COM | 2*RS232 /485 DB9 serial port; COM1~2 can support CAN (CAN module needs to be loaded) | |
| LAN | 2*Intel I210AT Gigabit Ethernet port | |
| USB | 2*USB3.0, 2*USB2.0 | |
| Dipswitches | 2 sets of 6-position dip switches, RS232/485 switching (dip switches are located at the bottom of the chassis) | |
| Power Interface | 1*DC12V (5.5*2.5) | |
| Storage
|
MSATA | 1*MSATA (no signal for this interface) ) |
| SSD | 1*M.2, support Key-M, 2280, NVME PCIE x2/SATA Adaptive SSD | |
| Expansion | 4G/WiFi | 1*MINIPCIE, support WiFi+BT or 4G module or CAN module |
| System Support
|
Microsoft | Windows 10 |
| Linux | Linux | |
| Power Supply Type
|
Power Type | DC 12V |
| Power Output | AC TO DC 60W or more (depending on the specific device) | |
| Environment | Operating Temperature | 0℃～40℃ |
| Storage Temperature | -20℃～70℃ | |
| Relative Humidity | 5%-95% relative humidity, non-condensing | |
| Vibration | 0.5g rms/5-500HZ/random |
