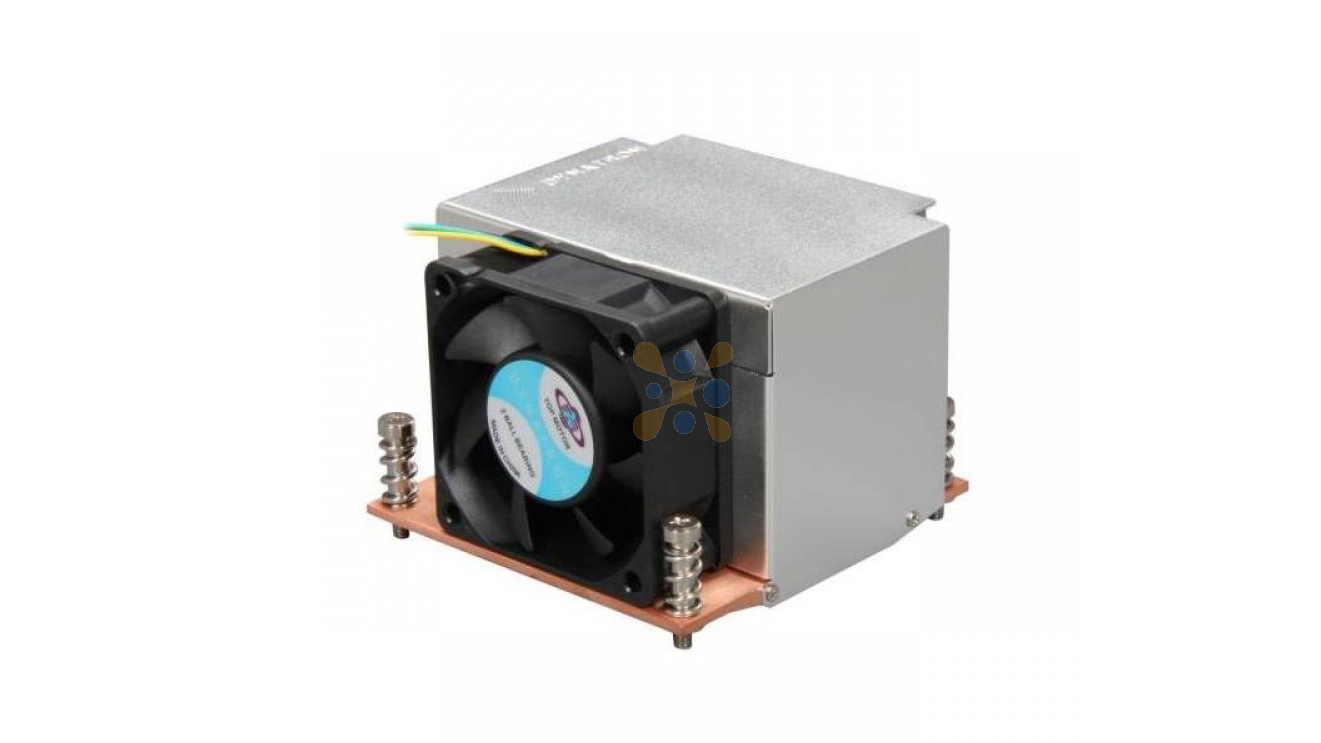

CPU kylare med låg höjd som passar utmärkt för tex rackmonterade lådor med 2U eller högre. Kylaren kan trots sin kompakta design kyla upp till hela 150W.
Specifications
- Mfr Part Number: R14
- CPU Application: Intel Socket 2011
- Narrow ILM Only
- Supports Intel Sandy Bridge EP/EX Processors up to 150 Watts
- Material: Copper 1100 Stacked Fins
- Fan:
- Speed:
- At Duty Cycle 0~20%: 1500 ±10% RPM
- At Duty Cycle 50%: 3500 ±10% RPM
- At Duty Cycle 100%: 7000 RPM Min
- Bearing: Double-Ball
- Rated Voltage: 12 V
- Power:
- At Duty Cycle 0~20%: 0.60 W
- At Duty Cycle 50%: 2.16 W
- At Duty Cycle 100%: 7.20 W
- Air Flow:
- At Duty Cycle 0~20%: 8.8 CFM
- At Duty Cycle 50%: 20.3 CFM
- At Duty Cycle 100%: 40.5 CFM
- Noise Level:
- At Duty Cycle 0~20%: 16.0 dBA
- At Duty Cycle 50%: 32.9 dBA
- At Duty Cycle 100%: 47.5 dBA
- Air Pressure:
- At Duty Cycle 0~20%: 0.70 mm-H2O
- At Duty Cycle 50%: 3.60 mm-H2O
- At Duty Cycle 100%: 14.30mm-H2O
- Lead Wire Pin Out:
- Pin1 – Ground (-)
- Pin2 – Power (+)
- Pin3 – Signal (Tachometer output)
- Pin4 – PWM Control
- Speed:
- Dimensions:
- Fan: 60.0 x 60.0 x 28.0 mm
- Overall: 102.0 x 70.0 x 67.0 mm
- Weight: 660.0±10 g
