Ett mycket innovativt PCI servernätverkskort med 2 st 10/100Mbps portar som kan fungera som två separata nätverkskort eller i en grupp med två lastbalanserade portar som ger mycket hög bandbredd mellan server och switch. Kortet är ett lågprofilskort men levereras med hållare för både “low profile” och fullhöjd.

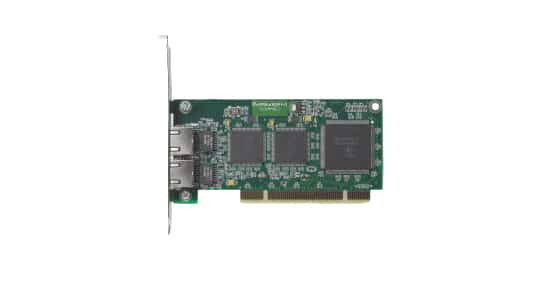

This dual ethernet adapter is a short low profile PCI board with two independent ethernet controllers, perfect for space limited systems and 2U servers. The adapter is a short standard profile PCI board with two independent ethernet controllers, for systems where the highest number of ports are needed. The board can also be used for adding additional ethernet ports to embedded communication computers.
Specifications:
- National Semicondutor DP83816 ethernet controller chips
- Texas Instruments PCI2250 PCI-PCI bridge chip
- High performance PCI busmaster interface with large buffers and interrupt holdoff
- Shielded RJ-45 connectors with LED’s for speed and activity
- 33 Mhz, 32 bit PCI 2.3 expansion cards, universal for 3.3V and 5V power and signaling
- IEEE 802.3u 10 Mbps 10BaseT and 100 Mps 100BaseTX, half and full duplex
- IEEE 802.3u Auto-Negotiation
- IEEE 802.3x Full duplex flow control
- lan1621: Two ports short low profile PCI board, power max 1.5W when 3.3V is available
- lan1641: Four ports short standard PCI board, power max 2.8W when 3.3V is available
- Operating temperature 0-60 °C
Software:
- Direct driver support in most operating systems, incl. FreeBSD, OpenBSD, NetBSD, Linux and Windows.
- Additional drivers available from the chip manufacturer.
