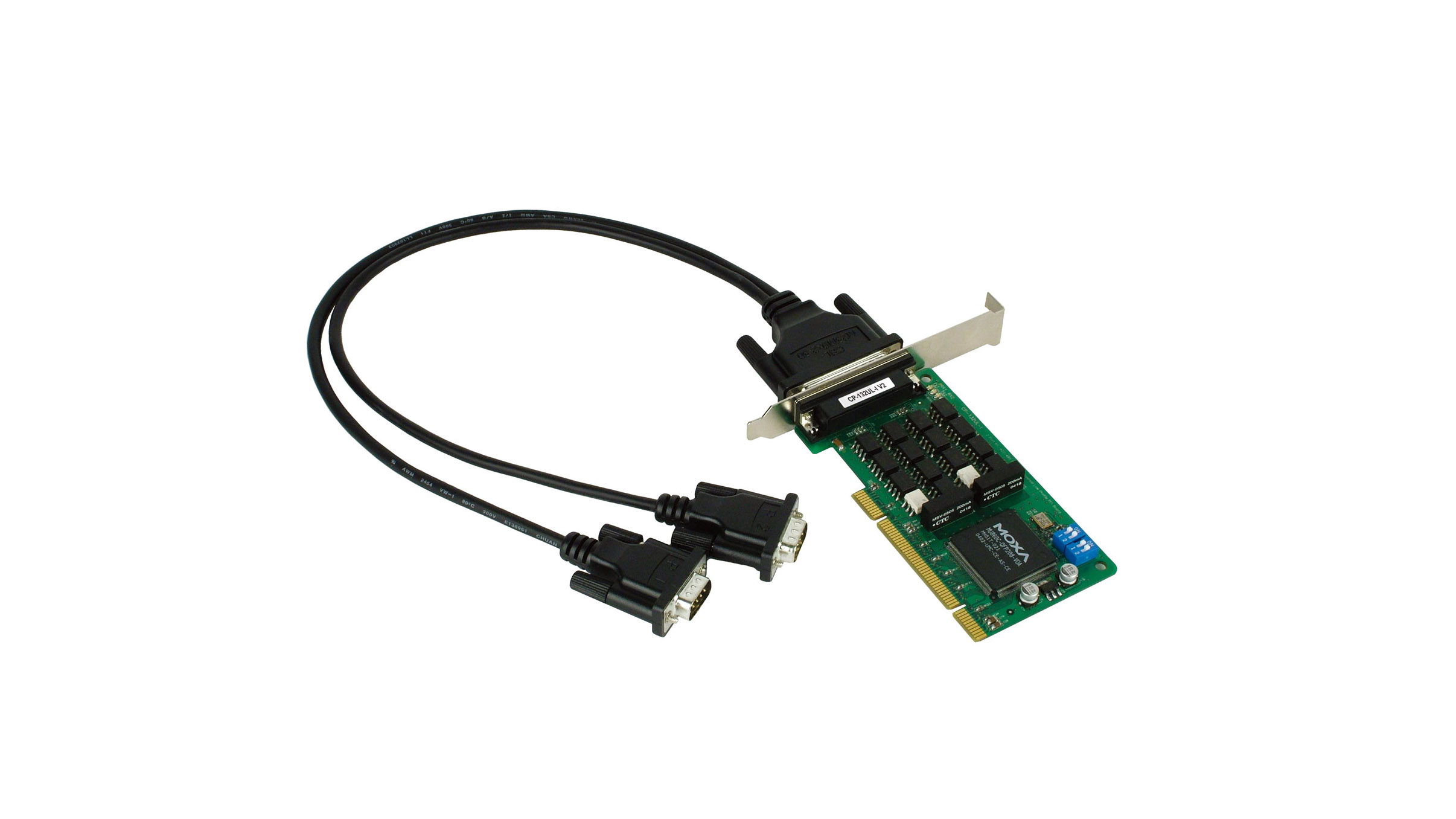

Moxa CP132UL PCI 2 st serieportar RS-422/485

1,195.00kr  956.00kr ex. moms

Tillgänglighet: I lager (kan restnoteras)

Artikelnr: SKU-2081 Kategori:
Hardware
Comm. Controller MU860 (16C550C compatible)
Bus 32-bit Universal PCI
Connector DB25 female
Serial Interface
Number of Ports 2
Serial Standards RS-422/485
Max. No. of Boards per PC 4
Serial Line Protection
Electrical Isolation 2 kV (CP-132UL-I only)
Performance
Baudrate 50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control XON/XOFF
Serial Signals
RS-422 TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B), RTS-(A), CTS+(B), CTS-(A), GND
RS-485-4w TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w Data+(B), Data-(A), GND
Physical Characteristics
Dimensions CP-132UL: 64.4 x 120 mm (2.53 x 4.72 in)
CP-132UL-I: 64.4 x 120 mm (2.53 x 4.72 in)
Driver Support
Windows Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Linux 2.4.x, 2.6.x, 3.x
Unix-like Systems QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Note: Please refer to Moxa’s website for the latest driver support information.
Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
EMC EN 55022/24
EMI CISPR 22, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
MTBF (mean time between failures)
Time 1,647,832 hrs
Standard Telcordia (Bellcore) TR/SR
Power Requirements
Input Current CP-132UL: 120 mA @ 5 VDC
CP-132UL-I: 490 mA @ 5 VDC
Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
