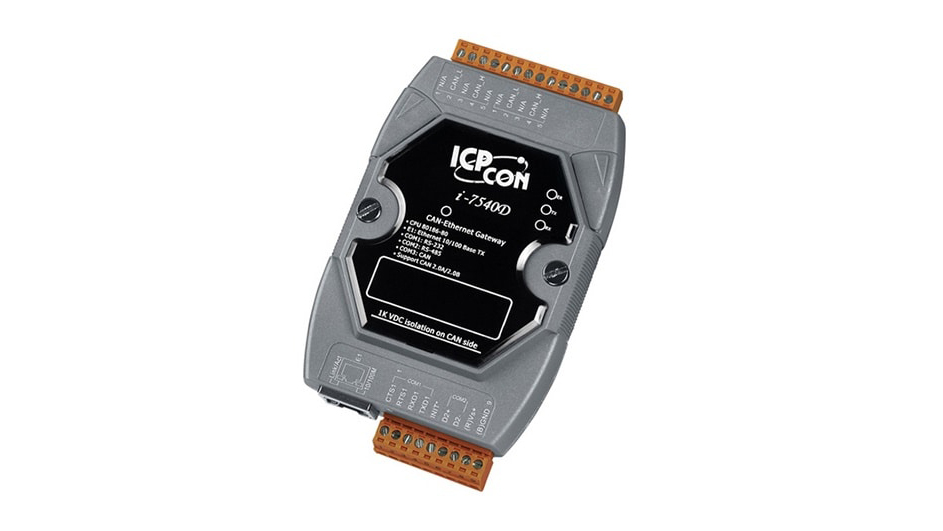

Adapter som omvandlare LAN till CAN Bus. CAN bus är ett seriellt gränssnitt som oftast används i fordonsmiljö men ibland även i industriella sammanhang. Denna adapter gör det enkelt att ansluta en utrustning med CAN interface till ett befintligt nätverk.
FEATURES:
- 80186-80 Embedded CPU, or compatible
- Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
- 10/100 Base-TX Ethernet Controller
- Reloadable Operating Software
- Message transmitted by using TCP/IP protocol
- Diagnostics
- COM driver support interrupt & 1K QUEUE Input & Output buffer
- Support one RS-232 port, one RS-485 port and one CAN port
- 2500Vrms photo-isolation protection on CAN side.
- Jumper select 120Ω terminal resistor for CAN channel
- Phillip 82C 250/251CAN Transceiver
- Support both CAN specification 2.0A and 2.0B.
- Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
- Max transmission distance of CAN over 1000m (follow CAN specification)
- Built-in self-tuner ASIC controller on RS-485 port
- 7-segment LED display.
- Software configurable CAN and RS-232 communication parameters
- Firmware updated from COM1 or Ethernet port
- Support Web Configuration
- Support maximum 25 Ethernet clients connection
- Support for Virtual COM technology
