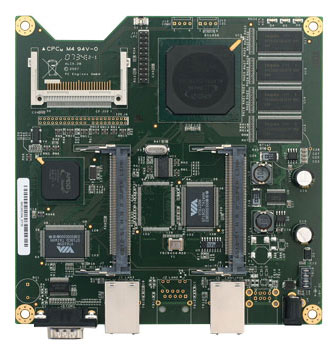

| Part numbers | alix2d0 = 2 LAN / 2 miniPCI / LX700 / 128 MB |
| Spec | • CPU: 433 MHz AMD Geode LX700 • DRAM: 128 MB DDR DRAM • Storage: CompactFlash socket • Power: DC jack or passive POE, min. 7V to max. 20V • Three front panel LEDs, pushbutton • Expansion: 2 miniPCI slots, LPC bus • Connectivity: 2 Ethernet channels (Via VT6105M 10/100) • I/O: DB9 serial port • Board size: 6 x 6″ (152.4 x 152.4 mm) – same as WRAP.1E • Firmware: tinyBIOS |
| Customer options | I2C bus, buzzer, RTC battery |
| Changes from ALIX.2C | • Change optional serial header J12 to COM2. • Add LED and switch pins to I2C header. • Populate buzzer driver circuit, add pins for use as GPIO. • Add option for power in header J18. • Some enhancements to reduce EMI. • Add second POSCAP to ruggedize 3.3V rail for high power radio cards. |
